Structural Geologic Map (Contours)--Top of the Onondaga Limestone or Equivalent, West Virginia

Metadata:


Identification_Information:
Citation:
Citation_Information:
Originator: West Virginia Geological and Economic Survey: Dudley H. Cardwell (original author), Raymond L. Strawser (original cartographer), Patrick Kish and Sam McCreery (digital compilers and editors), K. Lee Avary and Susan Pool (editors)
Publication_Date: 2010
Title:
Structural Geologic Map (Contours)--Top of the Onondaga Limestone or Equivalent, West Virginia
Geospatial_Data_Presentation_Form: vector digital data
Series_Information:
Publication_Information:
Publication_Place: Morgantown, WV
Publisher: West Virginia Geological and Economic Survey
Online_Linkage:
Description:
Abstract:
This data set depicts a structural geologic map on the top of the Devonian age Onondaga Limestone or equivalent, West Virginia (datum:  sea level).
Note:  Faults and folds associated with the Onondaga structure contours are provided in separate data sets.
Purpose:
The structural geologic map of the Onondaga Limestone and equivalent units provides basic geologic data for West Virginia.
Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 1982
Currentness_Reference:
publication date
Status:
Progress: Complete
Maintenance_and_Update_Frequency: None planned
Spatial_Domain:
Bounding_Coordinates:
West_Bounding_Coordinate: -82.683949
East_Bounding_Coordinate: -78.356347
North_Bounding_Coordinate: 40.636222
South_Bounding_Coordinate: 37.177658
Keywords:
Theme:
Theme_Keyword_Thesaurus: West Virginia Geological and Economic Survey
Theme_Keyword: Onondaga
Theme_Keyword: Onondaga Limestone
Theme_Keyword: Onondaga structure
Theme_Keyword: Devonian
Access_Constraints: None.
Use_Constraints:
None.
Point_of_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: West Virginia Geological and Economic Survey
Contact_Address:
Address_Type: mailing and physical address
Address:
Mont Chateau Research Center
Address:
1 Mont Chateau Road
City: Morgantown
State_or_Province: WV
Postal_Code: 26508-8079
Country: USA
Contact_Voice_Telephone: 304-594-2331
Contact_Facsimile_Telephone: 304-594-2575
Contact_Electronic_Mail_Address: info@geosrv.wvnet.edu
Hours_of_Service: 8:00 am to 5:00 pm ET
Browse_Graphic:

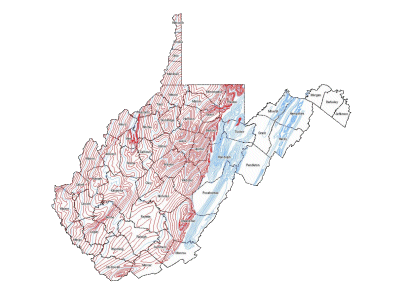

Browse_Graphic_File_Name: http://www.wvgs.wvnet.edu/www/datastat/Marcellus/Images/WVOnondaga_Structure_12132010.gif
Browse_Graphic_File_Type: GIF
Native_Data_Set_Environment:
Microsoft Windows Vista Version 6.1 (Build 7600) ; ESRI ArcCatalog 9.3.1.3000
Back to Top
Data_Quality_Information:
Lineage:
Source_Information:
Source_Citation:
Citation_Information:
Originator: West Virginia Geological and Economic Survey: Dudley H. Cardwell
Publication_Date: 1982
Title:
Oriskany and Huntersville Gas Fields of West Virginia (and Deep Well and Structural Geologic Map)
Series_Information:
Series_Name: Mineral Resources Series
Issue_Identification: 5A
Publication_Information:
Publication_Place: Morgantown, WV
Publisher: West Virginia Geological and Economic Survey
Source_Scale_Denominator: 250,000
Type_of_Source_Media: paper
Source_Time_Period_of_Content:
Process_Step:
Process_Description:
A paper copy of the 1982 map was scanned, georeferenced, and digitized; the file was attributed, to the extent possible, by using the original paper map.
Process_Step:
Process_Description:
The accuracy of the digitized lines was checked against the original scanned image by two separate individuals and adjustments were made as necessary.
Back to Top
Spatial_Data_Organization_Information:
Direct_Spatial_Reference_Method: Vector
Point_and_Vector_Object_Information:
SDTS_Terms_Description:
SDTS_Point_and_Vector_Object_Type: String
Point_and_Vector_Object_Count: 1058
Back to Top
Spatial_Reference_Information:
Horizontal_Coordinate_System_Definition:
Planar:
Grid_Coordinate_System:
Grid_Coordinate_System_Name: Universal Transverse Mercator
Universal_Transverse_Mercator:
UTM_Zone_Number: 17
Transverse_Mercator:
Scale_Factor_at_Central_Meridian: 0.999600
Longitude_of_Central_Meridian: -81.000000
Latitude_of_Projection_Origin: 0.000000
False_Easting: 500000.000000
False_Northing: 0.000000
Planar_Coordinate_Information:
Planar_Coordinate_Encoding_Method: coordinate pair
Coordinate_Representation:
Abscissa_Resolution: 0.000000
Ordinate_Resolution: 0.000000
Planar_Distance_Units: meters
Geodetic_Model:
Horizontal_Datum_Name: North American Datum of 1983
Ellipsoid_Name: Geodetic Reference System 80
Semi-major_Axis: 6378137.000000
Denominator_of_Flattening_Ratio: 298.257222
Back to Top
Entity_and_Attribute_Information:
Detailed_Description:
Entity_Type:
Entity_Type_Label: WVOnondaga_Structure_12132010
Attribute:
Attribute_Label: FID
Attribute_Definition:
Internal feature number.
Attribute_Definition_Source:
ESRI
Attribute_Domain_Values:
Unrepresentable_Domain:
Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute_Label: Shape
Attribute_Definition:
Feature geometry.
Attribute_Definition_Source:
ESRI
Attribute_Domain_Values:
Unrepresentable_Domain:
Coordinates defining the features.
Attribute:
Attribute_Label: ID
Attribute_Definition:
Identifier.
Attribute_Definition_Source:
West Virginia Geological and Economic Survey
Attribute:
Attribute_Label: ELEVATION
Attribute_Definition:
Elevation:  The depth or height, in feet, from sea level to the top of the Onondaga Limestone or equivalent unit.  Values below sea level (depth) are expressed as negative numbers; values above sea level (height) are expressed as positive numbers.
Attribute_Definition_Source:
West Virginia Geological and Economic Survey
Attribute:
Attribute_Label: LINE_TYPE
Attribute_Definition:
Line Type:  A numeric code associated with the sort of contour line (i.e. solid, hachured, segmented, segmented hachured) shown on the original map.
Attribute_Definition_Source:
West Virginia Geological and Economic Survey
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: 1
Enumerated_Domain_Value_Definition:
solid
Enumerated_Domain_Value_Definition_Source:
West Virginia Geological and Economic Survey
Enumerated_Domain:
Enumerated_Domain_Value: 2
Enumerated_Domain_Value_Definition:
hachured
Enumerated_Domain_Value_Definition_Source:
West Virginia Geological and Economic Survey
Enumerated_Domain:
Enumerated_Domain_Value: 3
Enumerated_Domain_Value_Definition:
segmented
Enumerated_Domain_Value_Definition_Source:
West Virginia Geological and Economic Survey
Enumerated_Domain:
Enumerated_Domain_Value: 4
Enumerated_Domain_Value_Definition:
segmented hachured
Enumerated_Domain_Value_Definition_Source:
West Virginia Geological and Economic Survey
Attribute:
Attribute_Label: LINE_STYLE
Attribute_Definition:
Line Style:  The sort of contour line  (i.e. solid, hachured, segmented, segmented hachured) shown on the original map.  The line sort indicates the amount of confidence, in general, between what is shown on the map as compared to the actual situation.  In addition, in some cases, the line sort shows the low side of the contour.
Attribute_Definition_Source:
West Virginia Geological and Economic Survey
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: solid
Enumerated_Domain_Value_Definition:
certain
Enumerated_Domain_Value_Definition_Source:
West Virginia Geological and Economic Survey
Enumerated_Domain:
Enumerated_Domain_Value: hachured
Enumerated_Domain_Value_Definition:
certain; hachure shows the low side of the contour
Enumerated_Domain_Value_Definition_Source:
West Virginia Geological and Economic Survey
Enumerated_Domain:
Enumerated_Domain_Value: segmented
Enumerated_Domain_Value_Definition:
approximately located
Enumerated_Domain_Value_Definition_Source:
West Virginia Geological and Economic Survey
Enumerated_Domain:
Enumerated_Domain_Value: segmented hachured
Enumerated_Domain_Value_Definition:
approximately located; hachure shows the low side of the contour
Enumerated_Domain_Value_Definition_Source:
West Virginia Geological and Economic Survey
Back to Top
Distribution_Information:
Distributor:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: West Virginia Geological and Economic Survey
Contact_Address:
Address_Type: mailing and physical address
Address:
Mont Chateau Research Center
Address:
1 Mont Chateau Road
City: Morgantown
State_or_Province: WV
Postal_Code: 26508-8079
Country: USA
Contact_Voice_Telephone: 304-594-2331
Contact_Facsimile_Telephone: 304-594-2575
Contact_Electronic_Mail_Address: info@geosrv.wvnet.edu
Hours_of_Service: 8:00 am to 5:00 pm ET
Resource_Description: Downloadable Data
Distribution_Liability:
DISCLAIMER REGARDING THE RELEASE OF DATA AND USER REQUIREMENTS

The West Virginia Geological and Economic Survey (WVGES) makes basic data available to the public under the following conditions:

1. We believe the data from WVGES to have been generated and assembled with a high degree of professionalism, accuracy, and precision for the purposes for which they were originally intended. In this context, "data" refer to numerical and textual data (such as in the "pipeline" application), digitial data (such as .las files), digital images (such as digital photographs), scanned records (such as completion reports), and spatial data (such as shapefiles). Some data have been compiled from other sources and the WVGES accepts no responsibility for any inaccuracies in those data. Therefore, we cannot and do not, either implicitly or explicitly, guarantee the accuracy, precision, or completeness of the data.

2. Neither the WVGES nor its staff members are liable or responsible for any damage or loss resulting from the use of the data or from inaccuracies contained in the data.

3. These data are provided as a service to the State of West Virginia through the WVGES for the purpose of research and development efforts. Final use of these data is the sole responsibility of the user.

4. We encourage you to report any problems, inconsistencies, or errors noted in using these data to the Information Services Program, so that we can correct them and provide even better service.
Standard_Order_Process:
Digital_Form:
Digital_Transfer_Information:
Transfer_Size: 0.576
