WVGES Trace Elements in West Virginia Coals

Click Here To Go To Trace Elements Framed Home Page Stratigraphic Distribution of Barium (Ba)

Click on image for larger view

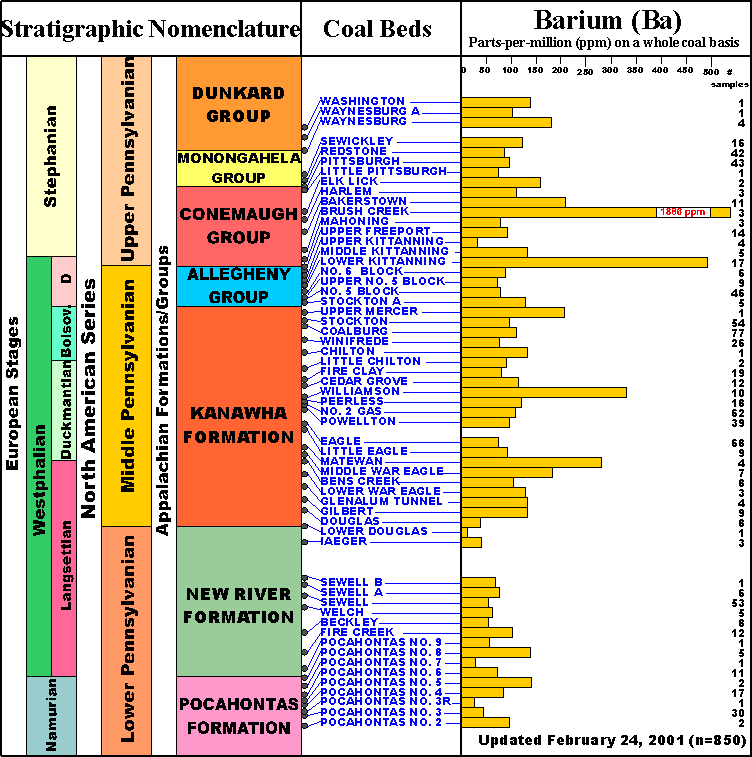

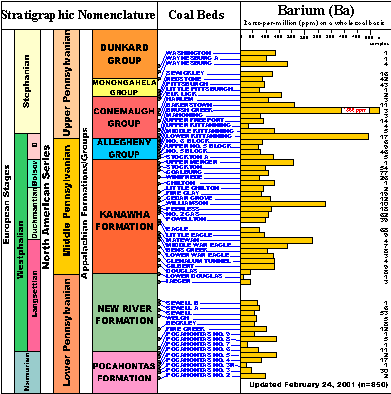

The stratigraphic distribution of Barium (Ba) shows that West Virginia coals generally average less than 150 ppm Ba on a whole coal basis with lower amounts in New River Formation coals.  High Ba anomalies in the Brush Creek, Lower Kittanning, Williamson and Matewan coals may be related to thin coals and overlying marine strata (see cautionary notes page).
Go to Barium State MapGo to Barium Summary StatisticsGo to General Elements Page
