Click Here To Go To Trace Elements Framed Home Page Bismuth (Bi) Summary Statistics

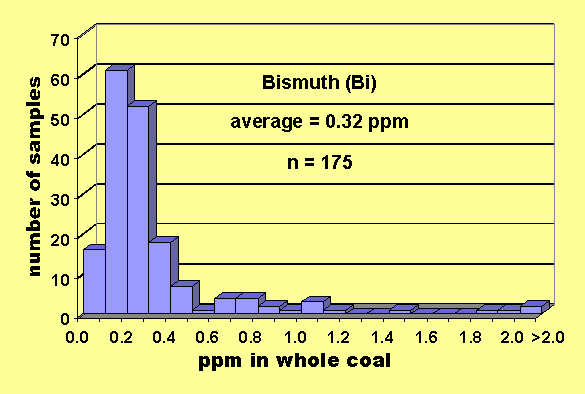

Click on histogram for larger view
The histogram of bismuth abundances in West Virginia coal beds shows a near normal distribution with a mean of 0.32 ppm (± 4.01 ppm) on a whole coal basis with a tail of higher values.  The maximum Bi value was 3.53 ppm in a bench of the Stockton coal.  Bismuth did not correlate with ash yield, total sulfur, pyritic sulfur or other trace elements except a slight correlation (r = 0.6614) with uranium (U).
