WVGES Trace Elements in West Virginia Coals

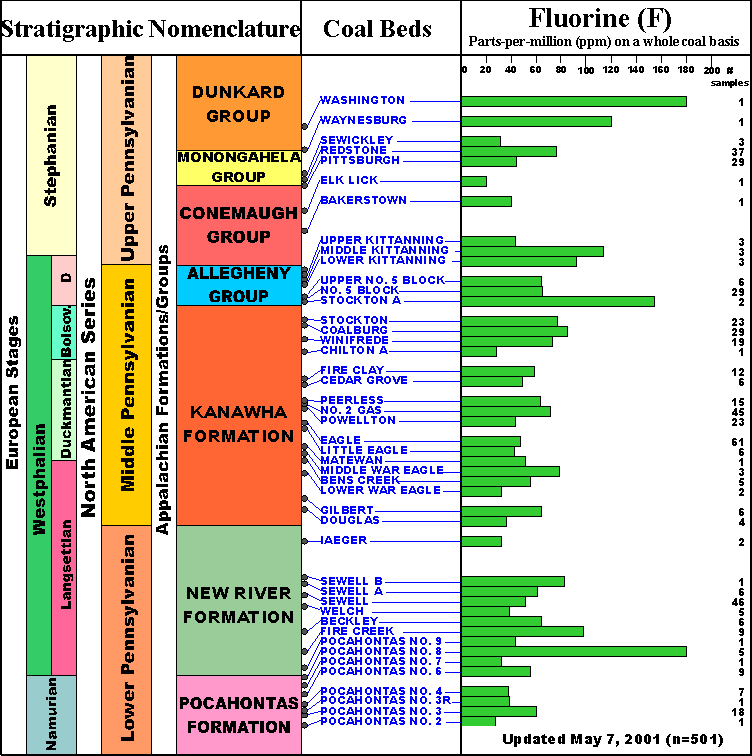

Click Here To Go To Trace Elements Framed Home Page Stratigraphic Distribution of Fluorine (F)

Click on image for larger view

The Stratigraphic distribution of fluorine shows random variation in the coal beds of West Virginia with most coals averaging less than 100 ppm F.
Go to Fluorine State MapGo to Fluorine Summary StatisticsGo to General Elements PageGo to HAP Elements Page
