Click Here To Go To Trace Elements Framed Home PageNiobium (Nb) Summary Statistics

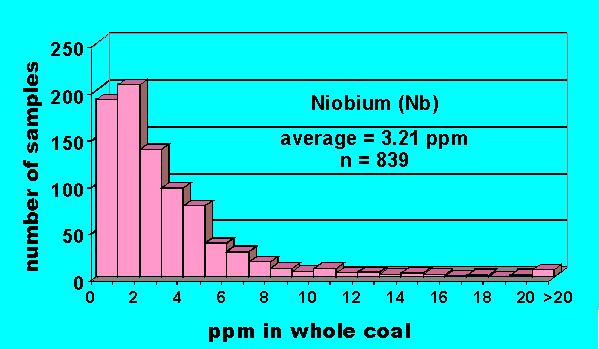

Click on histogram for larger view
Niobium averaged 3.21 ppm (± 3.64 ppm) in West Virginia coals with a histogram strongly skewed toward lower values and showing a significant tail toward higher values and a maximum value of 33.00 ppm in a bench of the Bakerstown coal (see cautionary note page) with the No. 5 Block and Coalburg coals also containing high Nb values.  Niobium correlated slightly with ash yield but well with the ash related elements zirconium (Zr), tantalum (Ta), chromium (Cr), hafnium (Hf), vanadium (V), thorium (Th), lithium (Li), scandium (Sc), lead (Pb) and tin (Sn).  Niobium also correlated with rare earth elements found in the detrital mineral monazite, especially neodymium (Nd), dysprosium (Dy), lanthanum (La), cerium (Ce) and erbium (Er).

Spearman Correlation Coefficients (r) with Niobium
Ash Yield
Zr
Ta
Cr
Hf
V
Th
Li
+0.6541
+0.8429
+0.7531
+0.7429
+0.7424
+0.7170
+0.7104
+0.6871
n = 832
n = 735
n = 453
n = 831
n = 498
n = 831
n = 810
n = 832
Nd
Sc
Dy
La
Pb
Ce
Sn
Er
+0.6760
+0.6505
+0.6365
+0.6298
+0.6291
+0.6262
+0.6209
+0.6141
n = 417
n = 832
n = 77
n = 533
n = 829
n = 534
n = 541
n = 203
