Click Here To Go To Trace Elements Framed Home PagePraseodymium (Pr) Summary Statistics

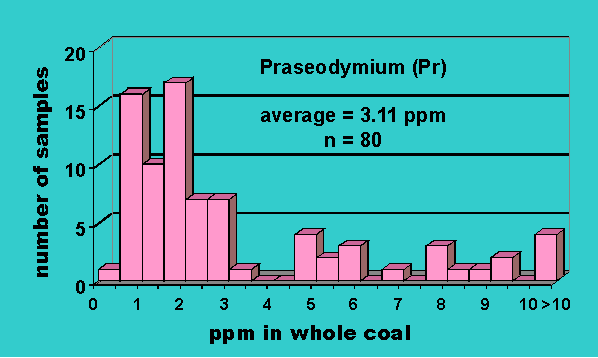

Click on histogram for larger view
Praseodymium was detected in only 80 of 546 coal samples analyzed in West Virginia and averaged 3.11 ppm (± 2.87 ppm) on a whole coal basis with an irregular histogram showing a significant tail toward higher values.  A maximum Pr value of 11.83 ppm was observed in the Beckley coal with high Pr in other New River Formation coals.    Praseodymium correlated very poorly with ash yield (r = +0.2173), but correlated somewhat with molybdenum (Mo) (r = +0.7038) and uranium (U) (r = +0.6086).
Go to Stratigraphic Distribution of PraseodymiumGo to Praseodymium State MapGo to General Elements PageGo to All Elements Summary Statistics Table
