WVGES Trace Elements in West Virginia Coals

Click Here To Go To Trace Elements Framed Home Page Samarium (Sm) Summary Statistics

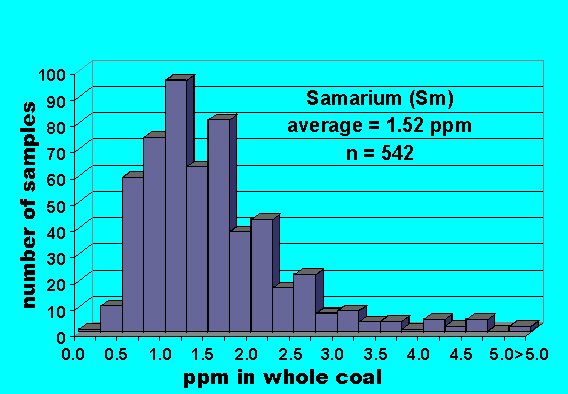

Click on histogram for larger view
Samarium averaged 1.52 ppm (± 0.86 ppm) in West Virginia coals with a near normal histogram showing a slight tail toward higher values and a maximum value of 8.30 ppm in a bench of the Coalburg coal.  Samarium correlated slightly with ash yield, and correlated very well with some other rare earth element components of monazite, especially lanthanum (La), europium (Eu), cerium (Ce), lutetium (Lu), ytterbium (Yb) and terbium (Tb).  Samarium also correlated well with the ash related elements thorium (Th), scandium (Sc), chromium (Cr), vanadium (V), lithium (Li), hafnium (Hf) and  lead (Pb).
Spearman Correlation Coefficients (r) with Samarium
Ash Yield
n = 538
n = 536
n = 536
n = 538
n = 503
n = 537
n = 489
n = 525
n = 538
n = 537
n = 537
n = 538
n = 505
n = 535
Go to Stratigraphic Distribution of SamariumGo to Samarium State MapGo to General Elements PageGo to All Elements Summary Statistics Table
