WVGES Trace Elements in West Virginia Coals

Click Here To Go To Trace Elements Framed Home Page Tungsten (W) Summary Statistics

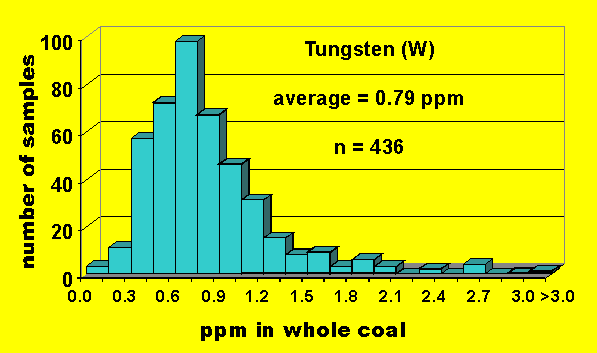

Click on histogram for larger view
Tungsten in West Virginia coals averaged 0.79 ppm (± 0.44 ppm) with a histogram showing a near-normal distribution with a tail toward higher values and a maximum value of 4.24 ppm in the Sewell coal.  Tungsten did not correlate with ash yield (r = +0.2251), total sulfur, pyritic sulfur or any other trace elements.
Go to Stratigraphic Distribution of TungstenGo to Tungsten State MapGo to General Elements PageGo to All Elements Summary Statistics Table
