I68/I70: A Window to the Appalachians--A Road Guide

Geology Field Trip Guide
PDF icon PDF, 2.37 MB
Interstate 68/70 geology road guide: I68/I70: A Window to the Appalachians (PDF icon PDF, 2.37 MB): A 160-mile road guide from Morgantown, West Virginia to Frederick, Maryland highlighting the major structural components of the Appalachian Mountains along interstates 68 and 70. Note: Some stratigraphic terminology and correlations may not adhere to those currently in use by the WVGES. Review the most current WVGES stratigraphic terminology. View and download the images from this publication below.

Illustrations

Use these images from the road guide, I68/I70: A Window to the Appalachians PDF icon PDF, 2.37 MB, for your educational presentation or trip! Click on the thumbnail image to view the larger one and right click on the large image to save it.

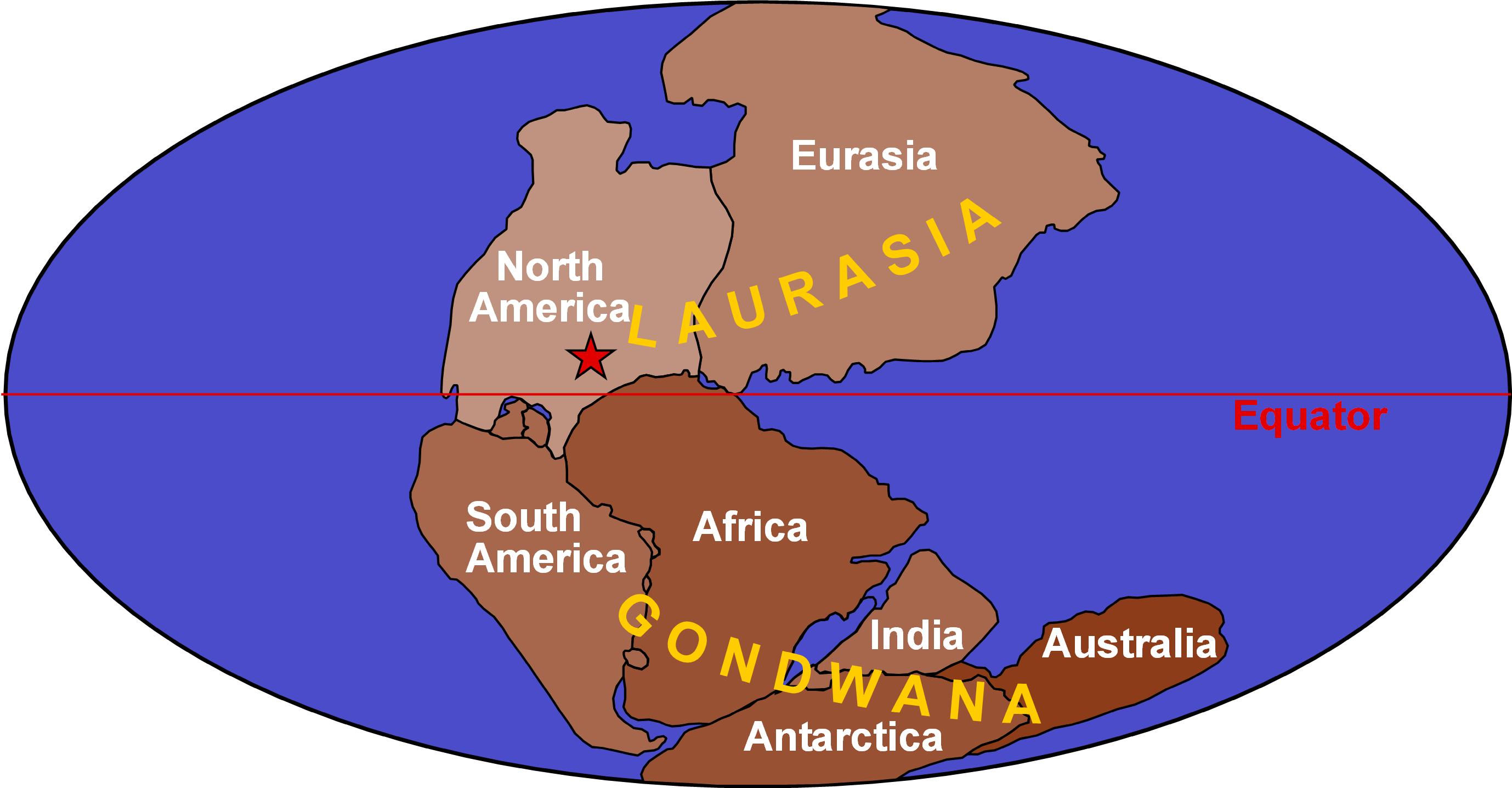

image of Figure 1

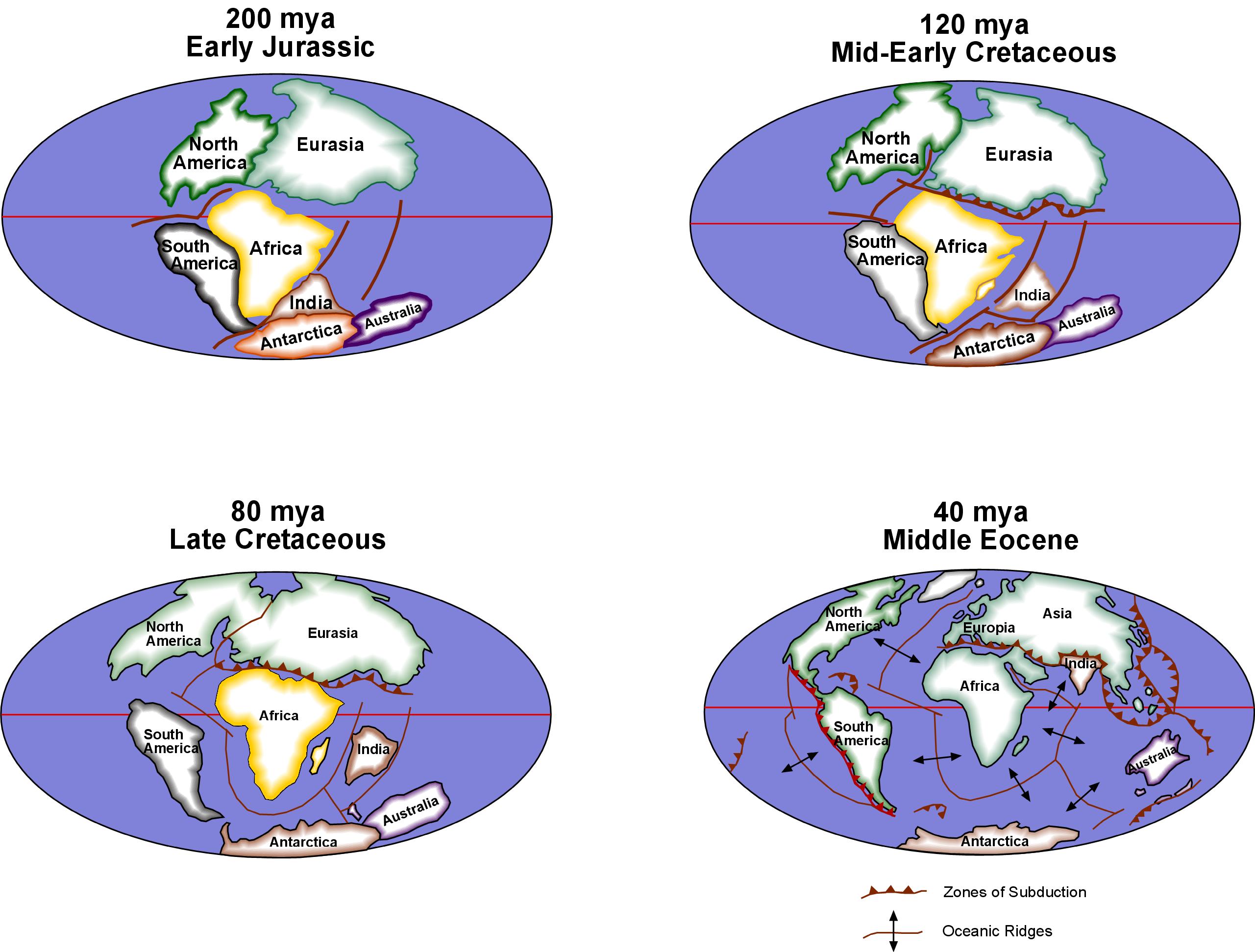

(204 KB, 2757 x 1436 pixels)		 image of Figure 2

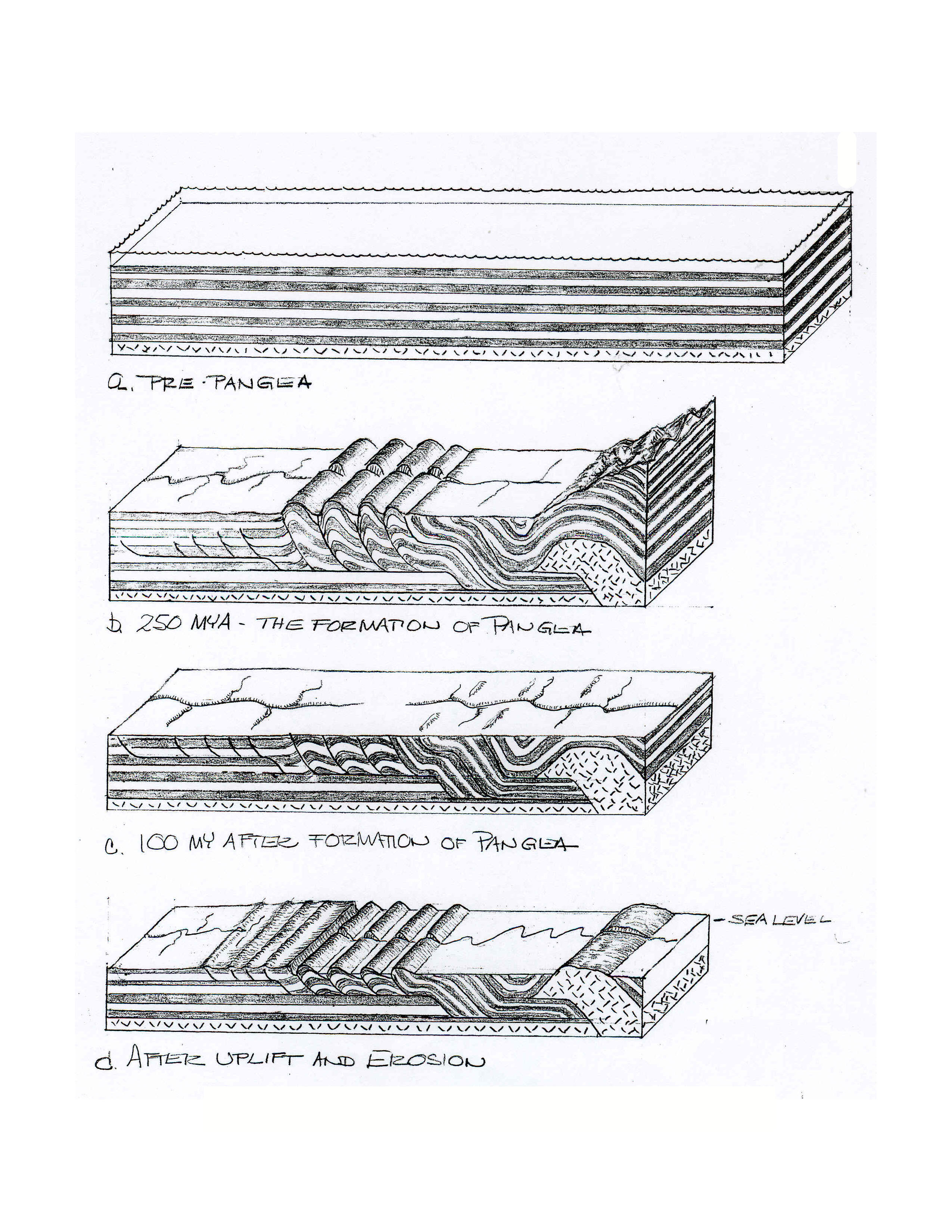

(372 KB, 2561 x 1943 pixels)		 image of Figure 3

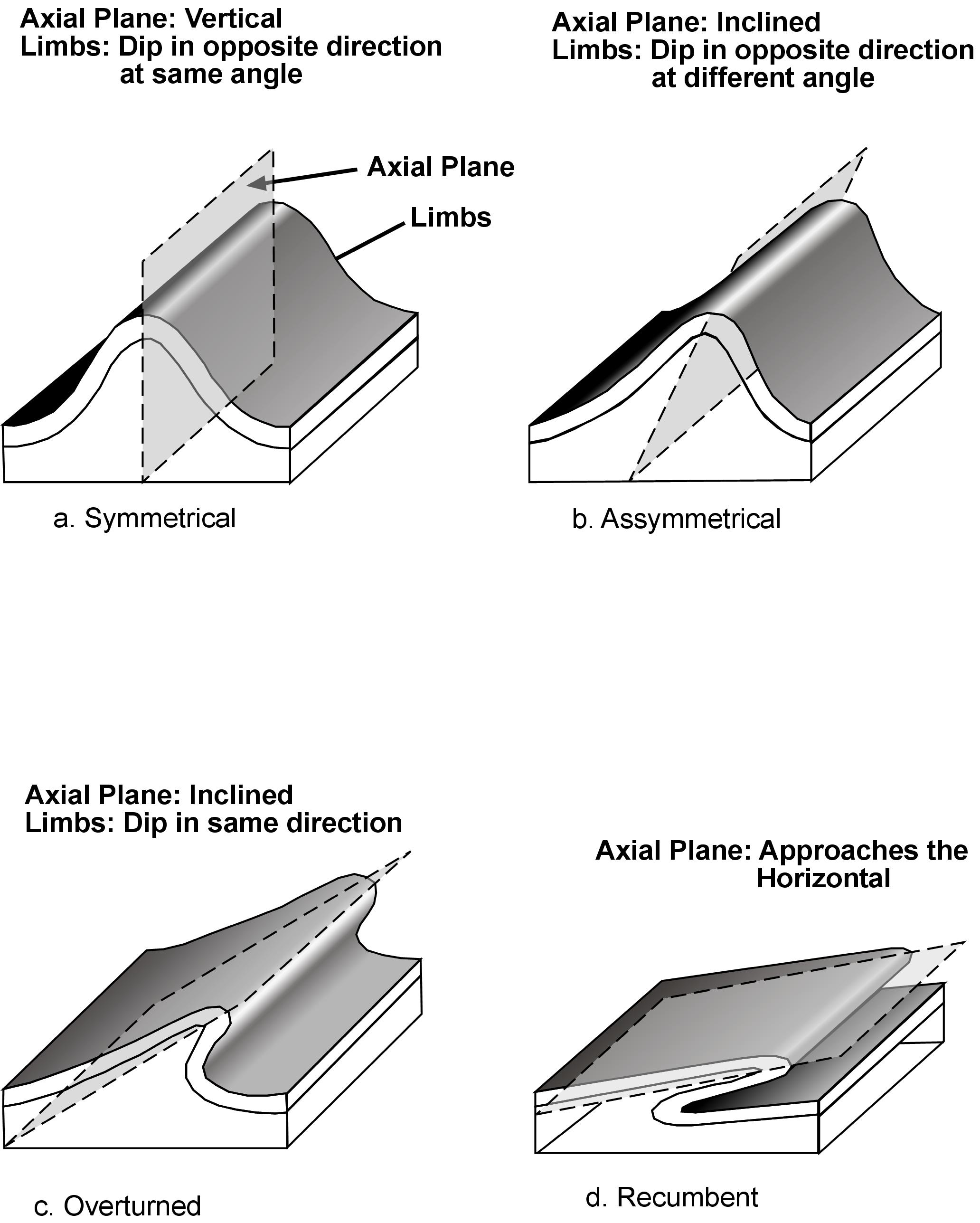

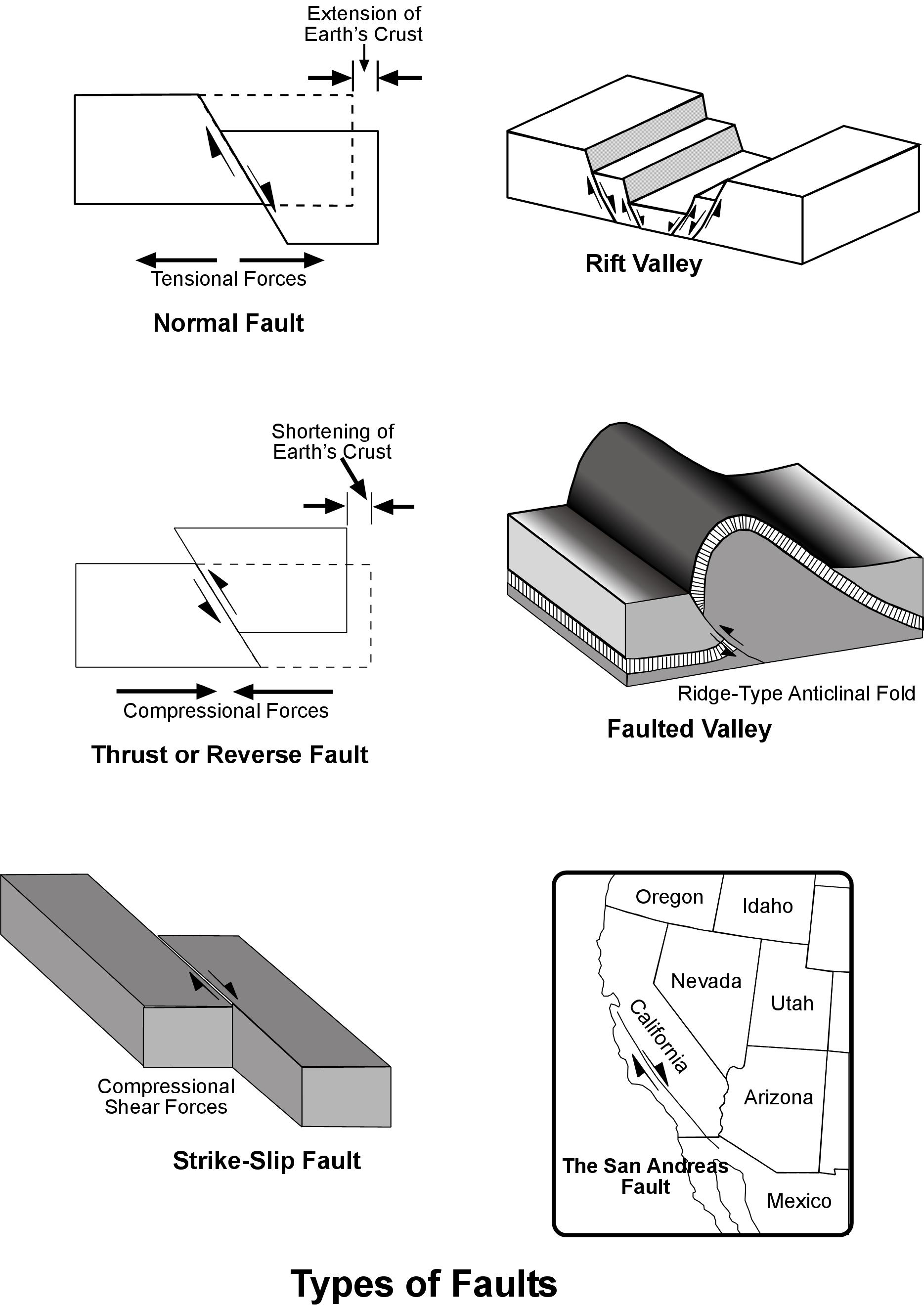

(1,377 KB, 2550 x 3300 pixels)		 image of Figure 4
(325 KB, 2064 x 2575 pixels)		 image of Figure 5

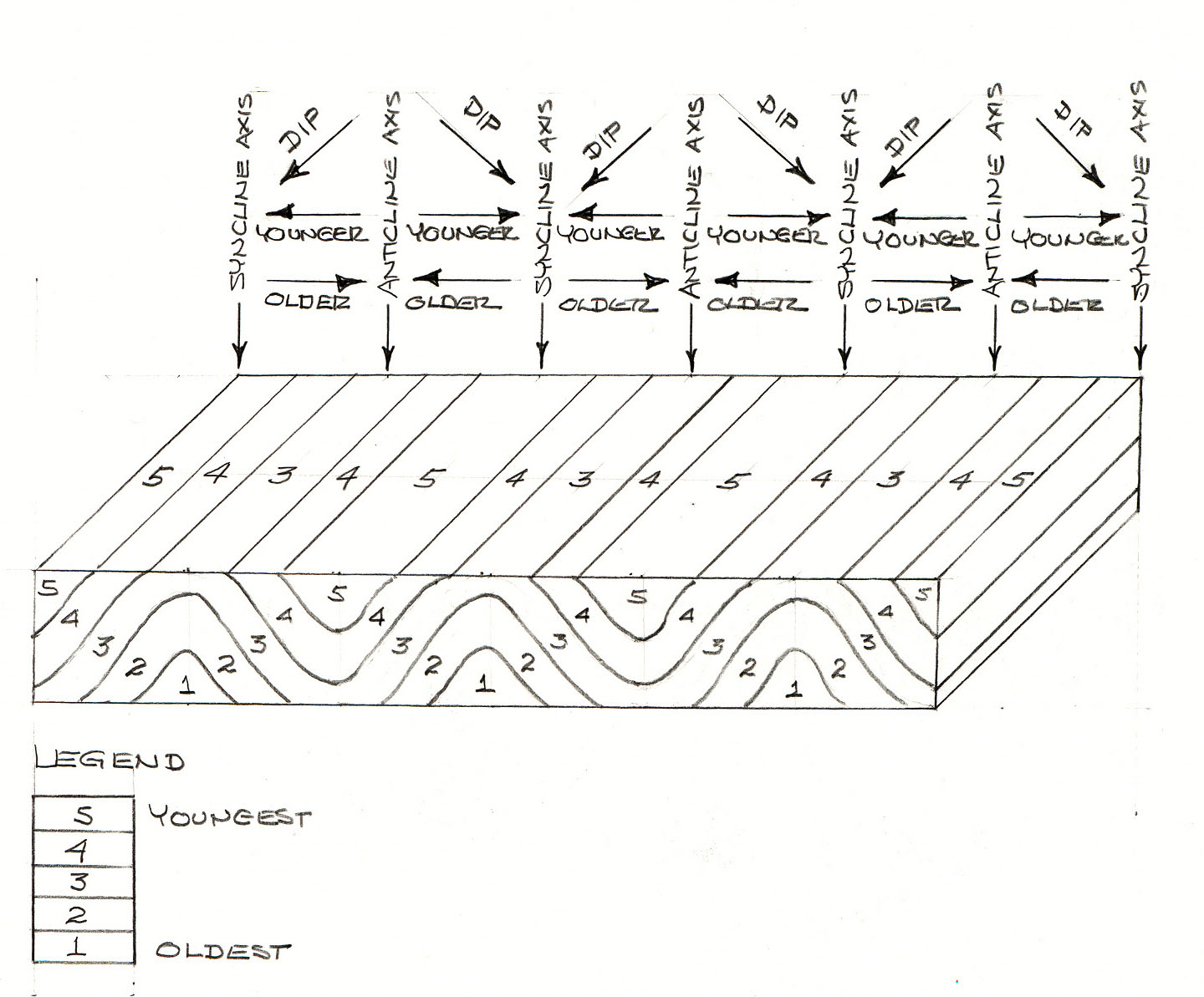

(293 KB, 1869 x 2642 pixels)		 image of Figure 7
(217 KB, 1440 x 1193 pixels)

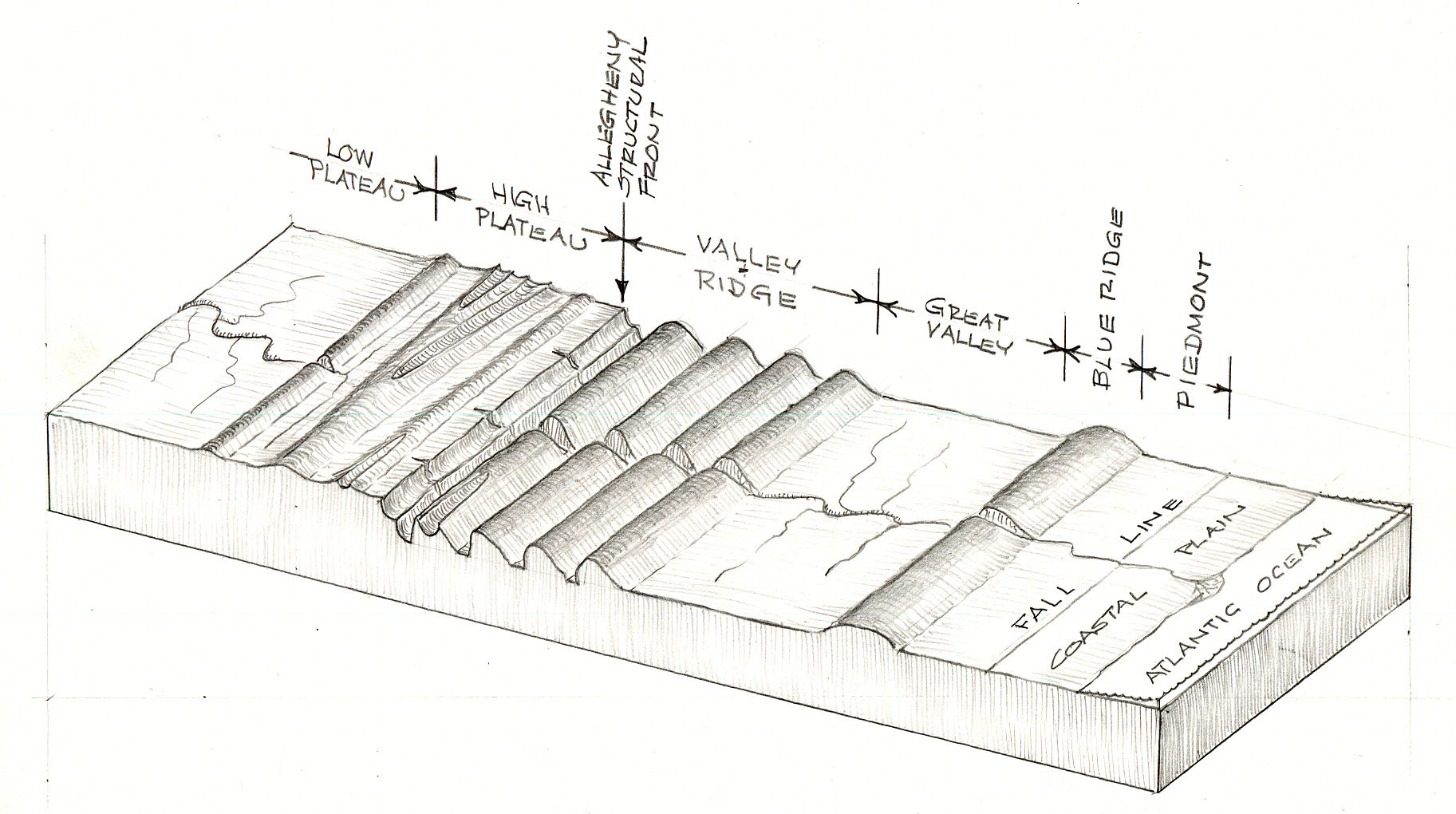

image of Figure 8

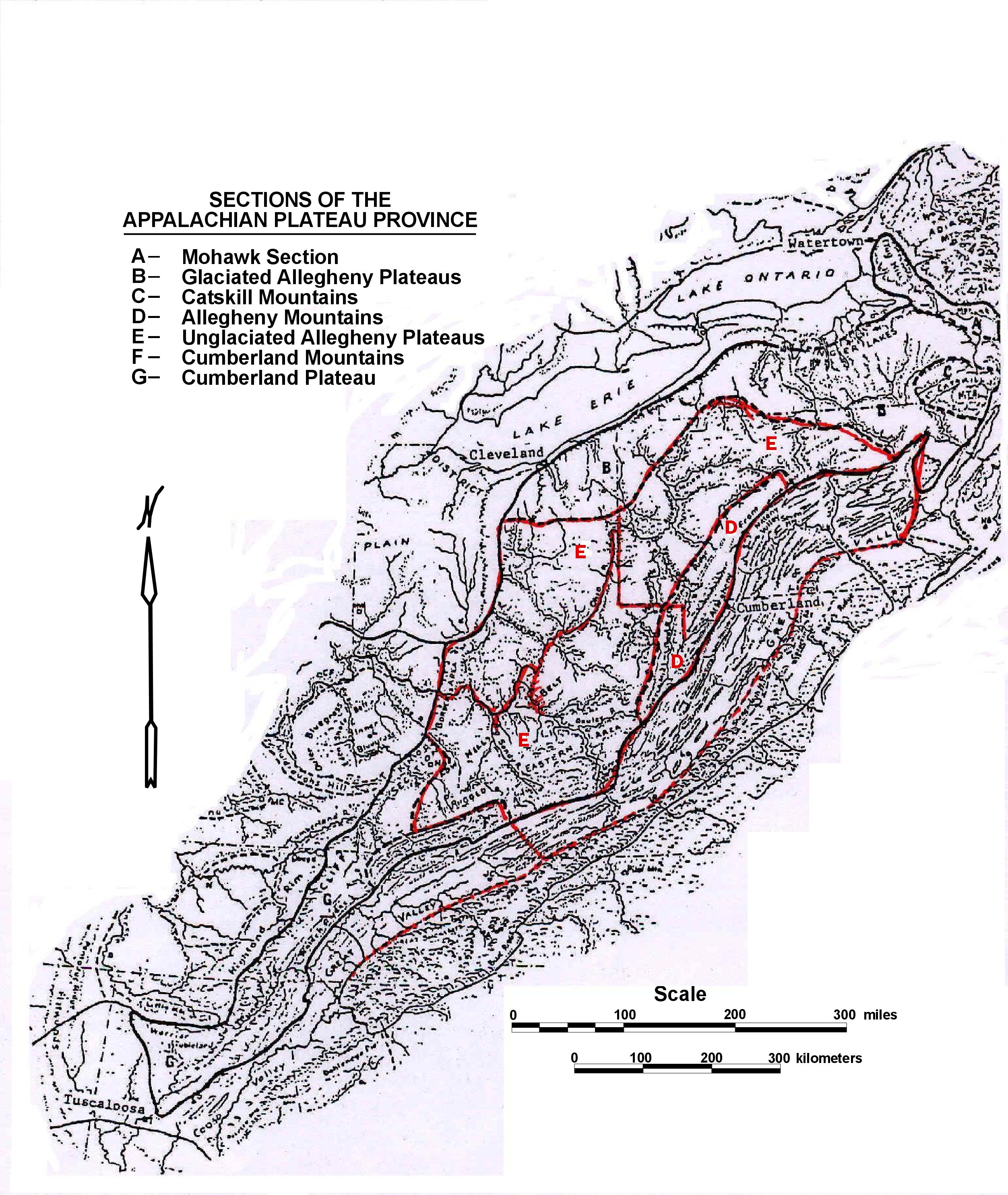

(270 KB, 1825 x 1020 pixels)		 image of Figure 9

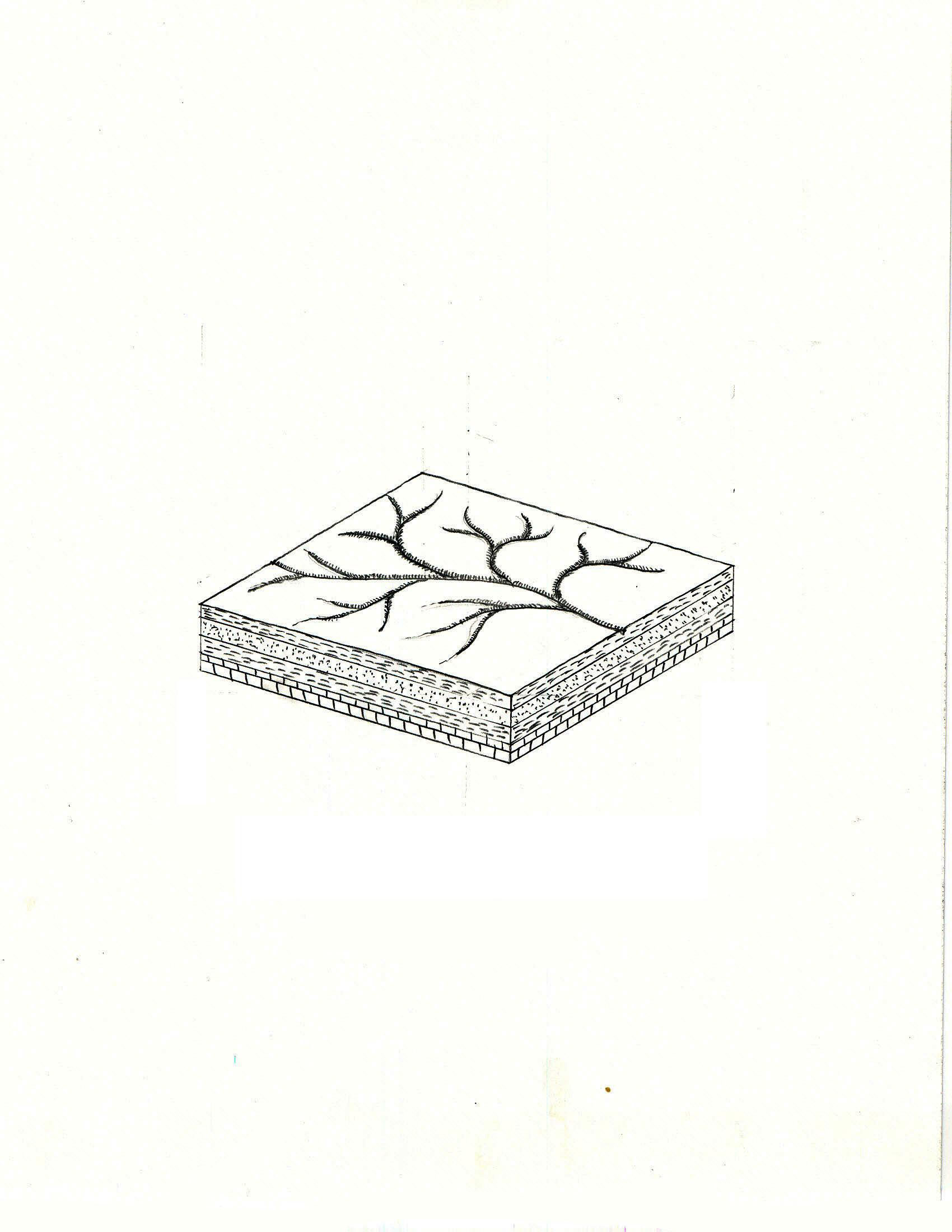

(1,210 KB, 2504 x 2969 pixels)		 image of Figure 10

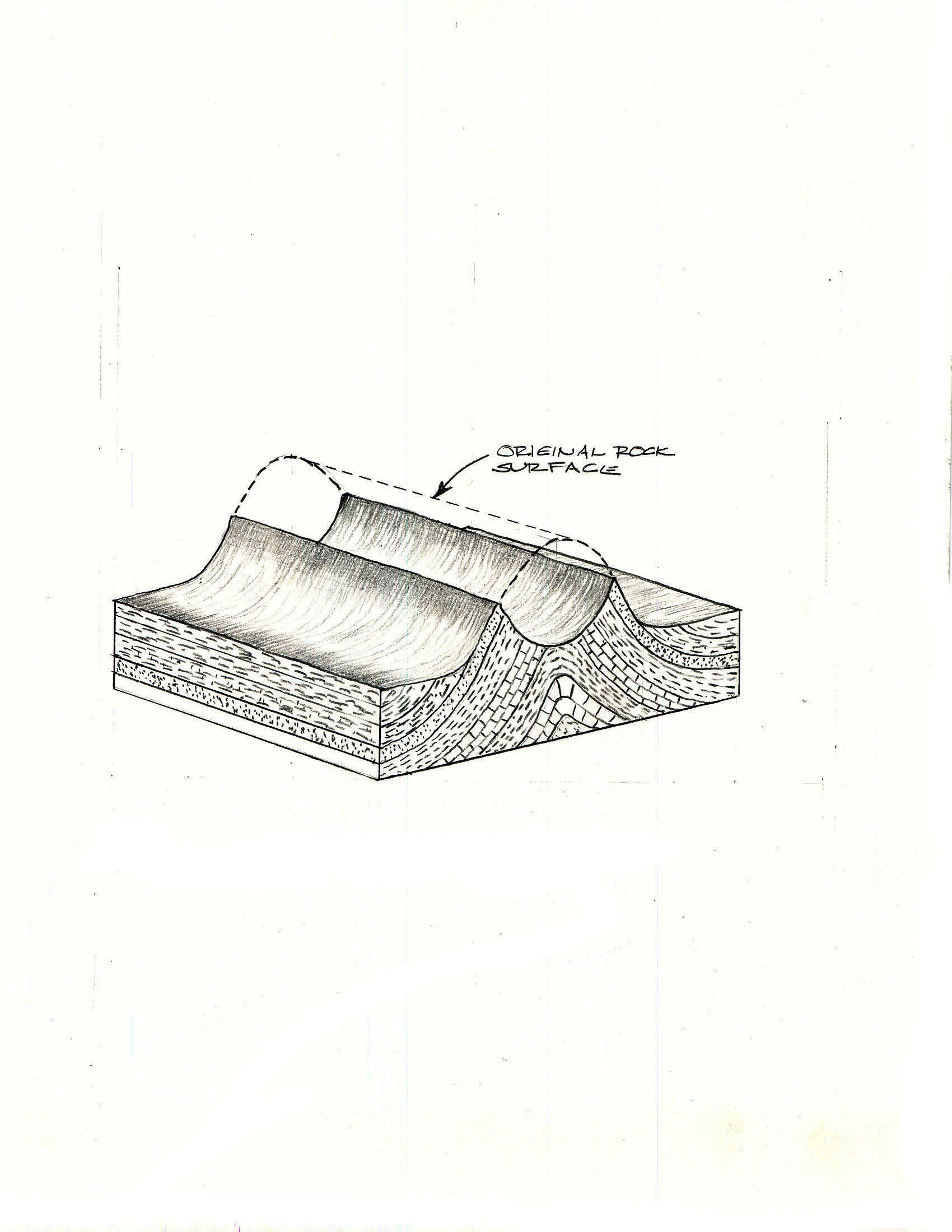

(183 KB, 1700 x 2199 pixels)		 image of Figure 11

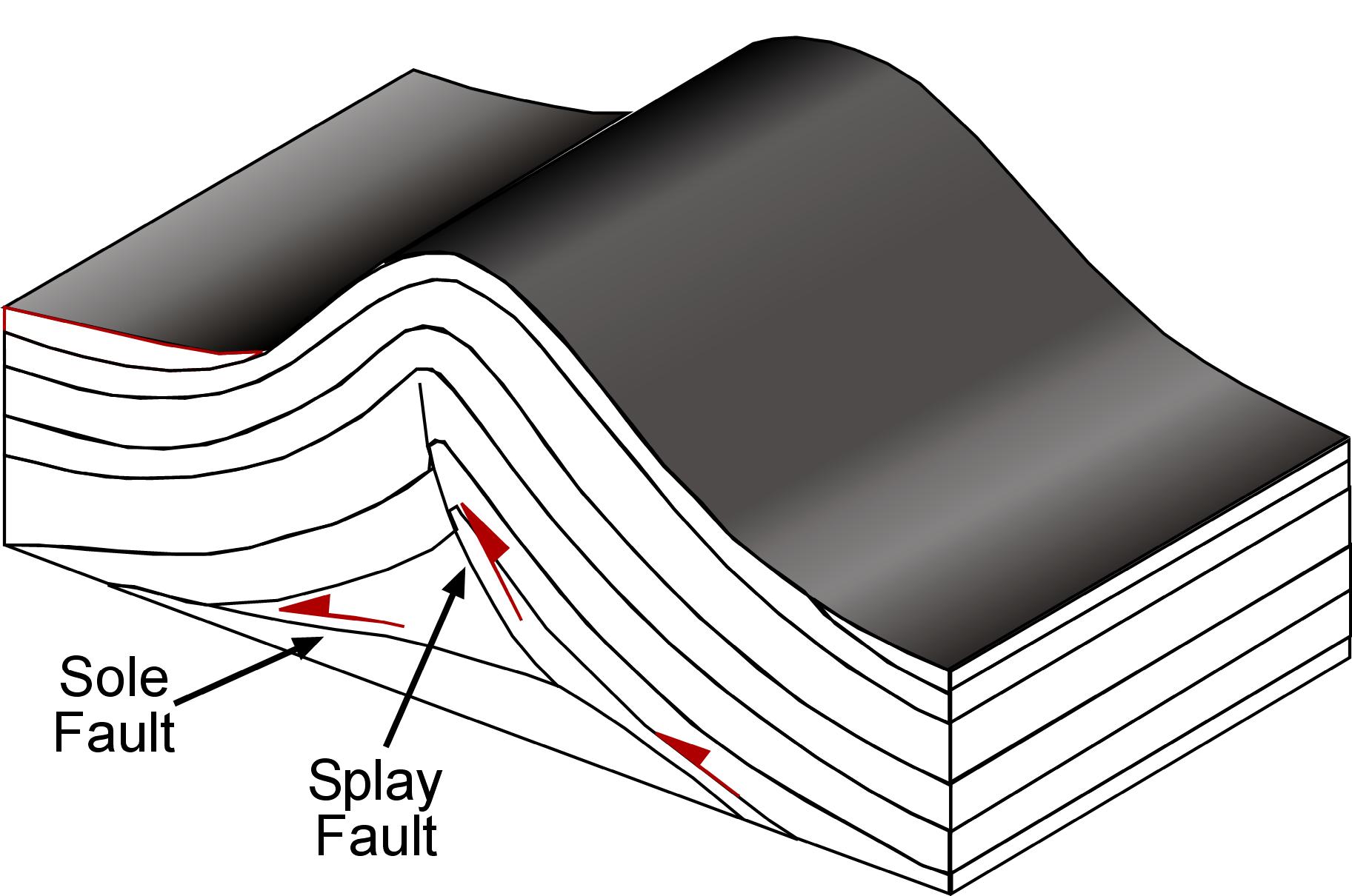

(266 KB, 1700 x 2199 pixels)		 image of Figure 12
(168 KB, 1825 x 1210 pixels)		 image of Figure 13
Figure 13 (237 KB, 2132 x 1776 pixels)
image of Figure 14

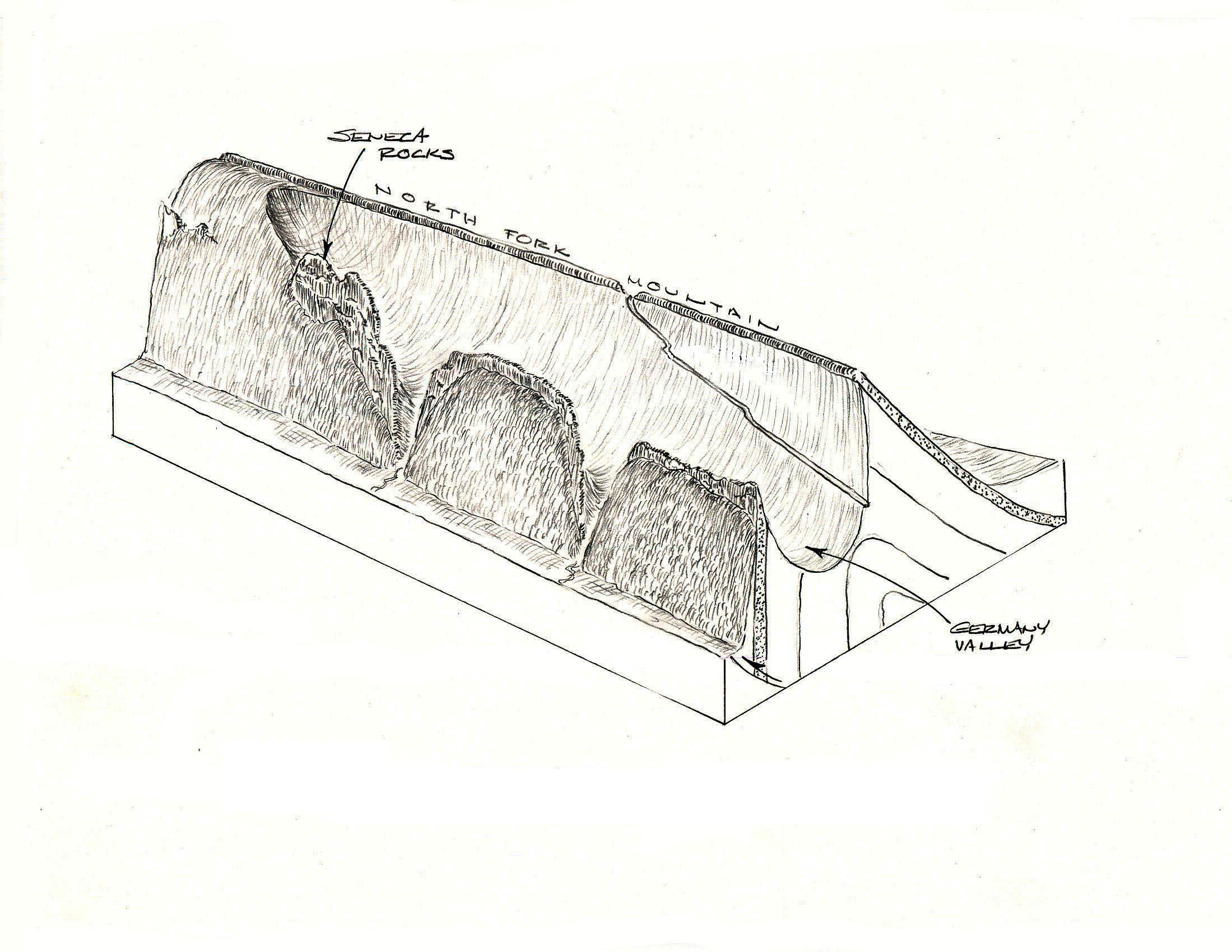

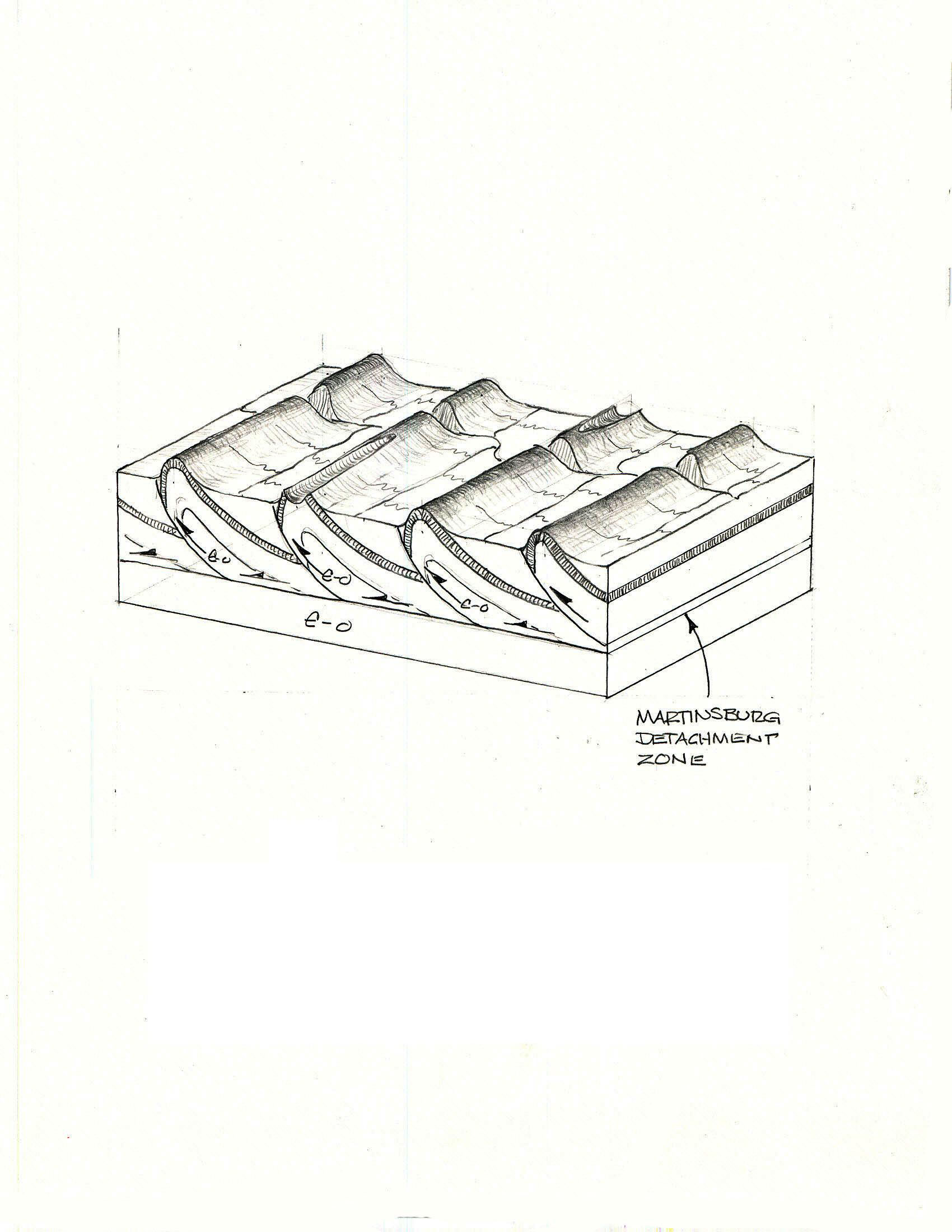

(242 KB, 1700 x 2199 pixels)		 image of Figure 15

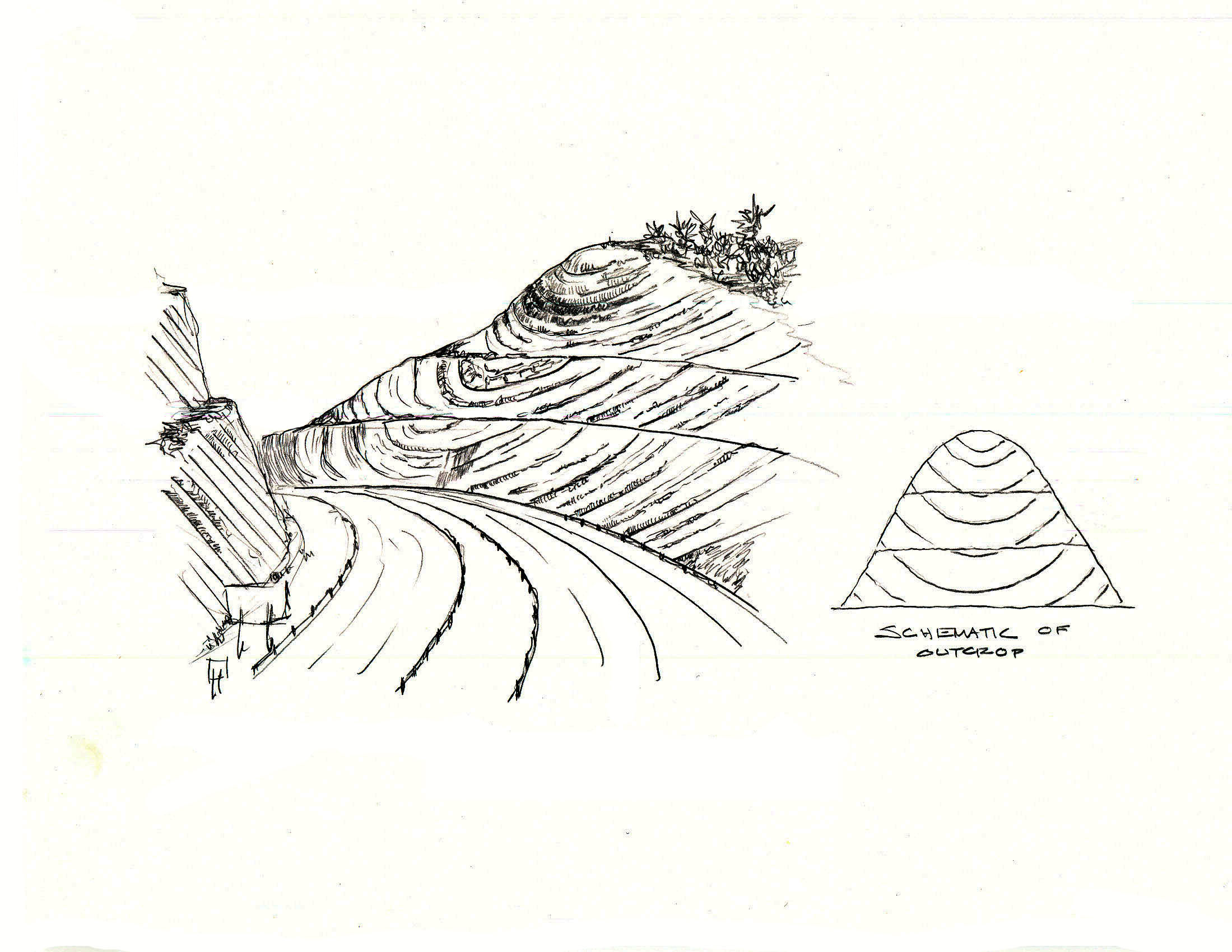

(385 KB, 2199 x 1700 pixels)		 image of Figure 16a

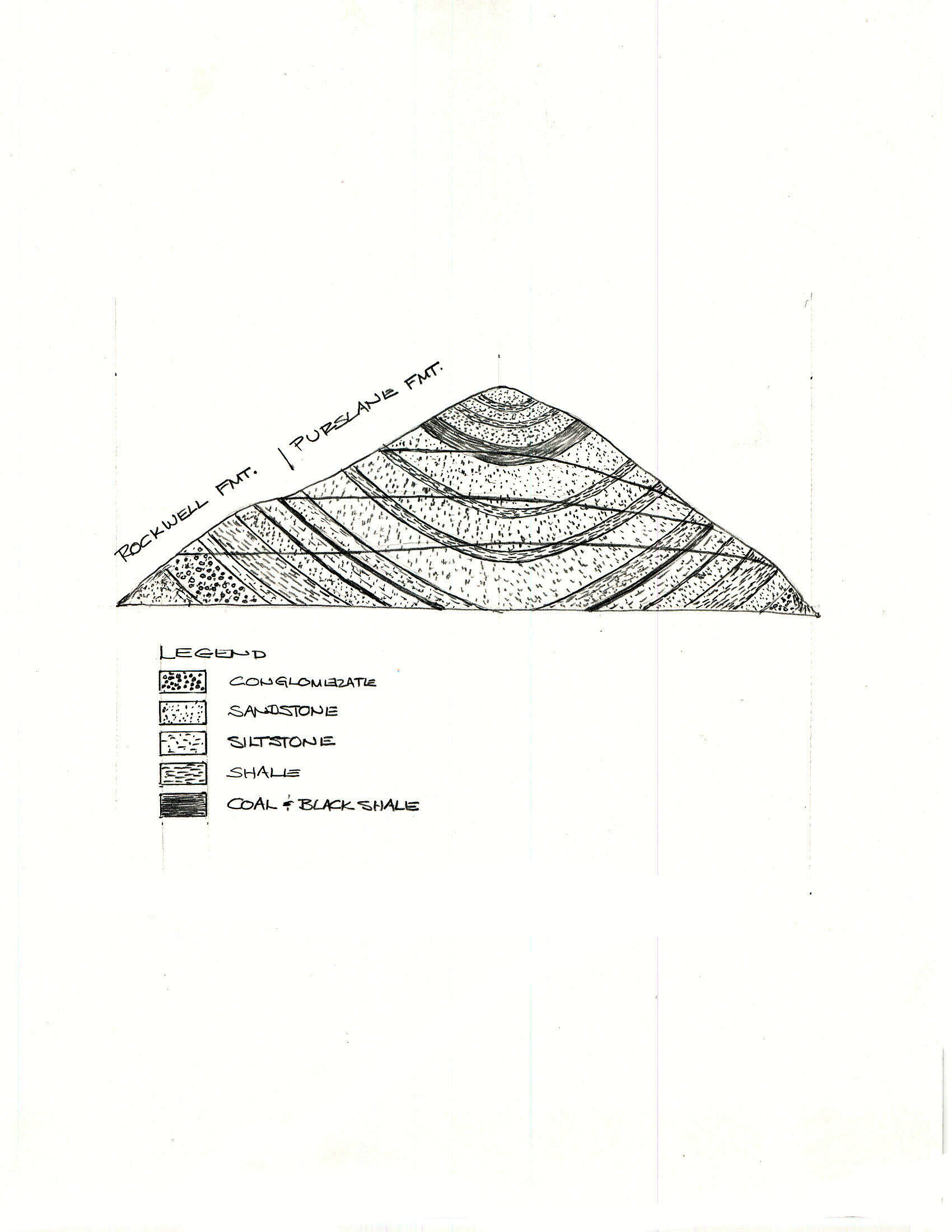

(343 KB, 2199 x 1700 pixels)		 image of Figure 16b
(277 KB, 1700 x 2199 pixels)		 image of Figure 17

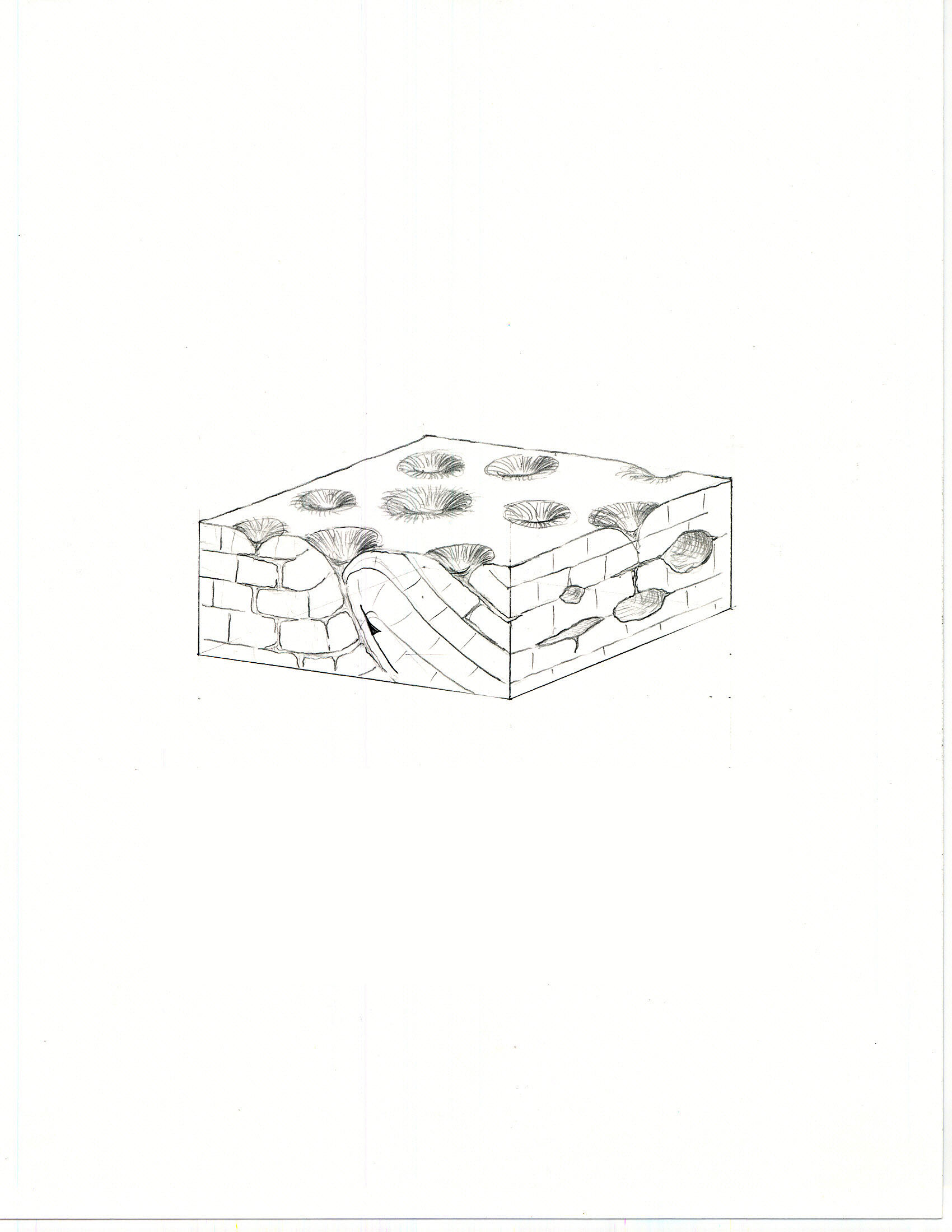

(195 KB, 1700 x 2199 pixels)		 image of Figure 18
(184 KB, 1700 x 2199 pixels)

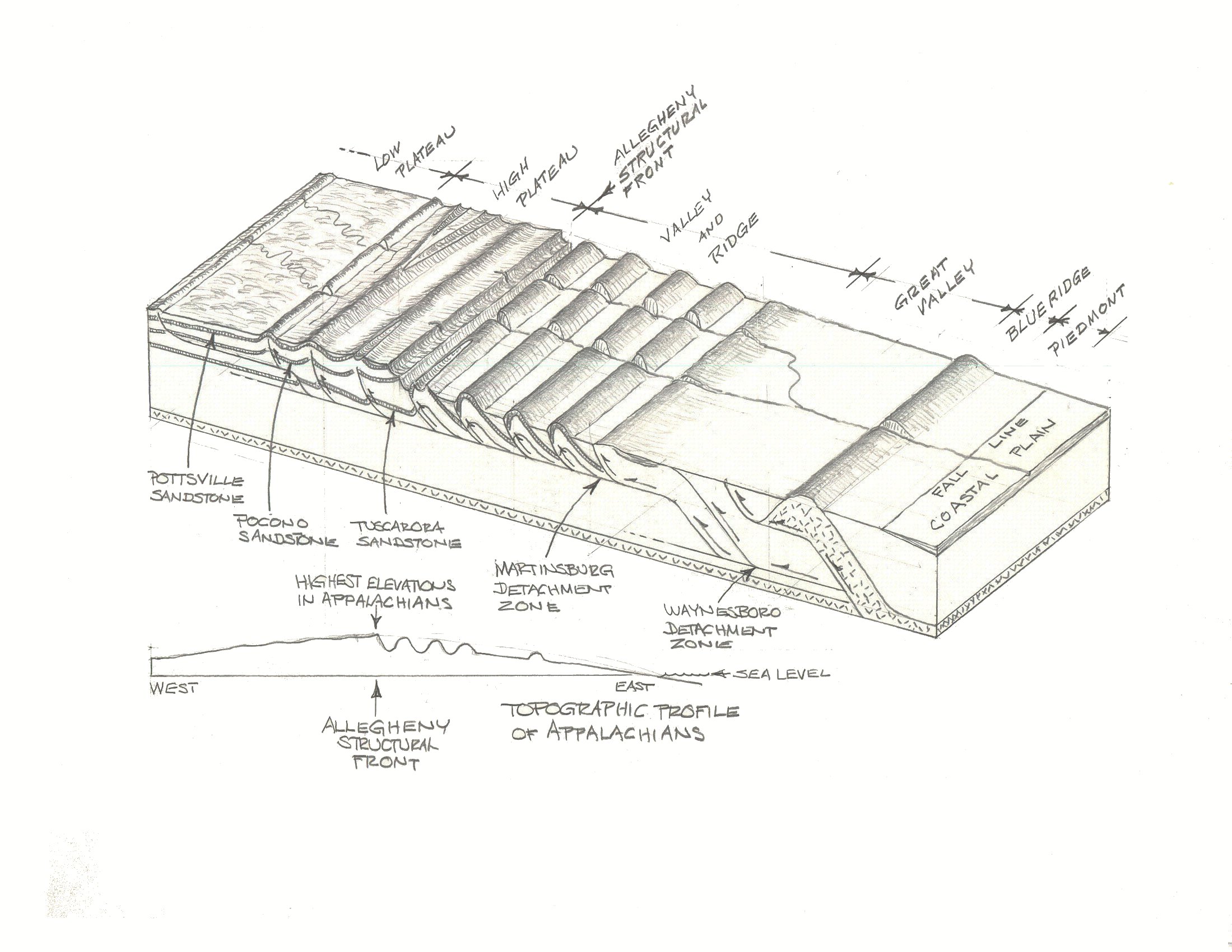

image of Figure 19

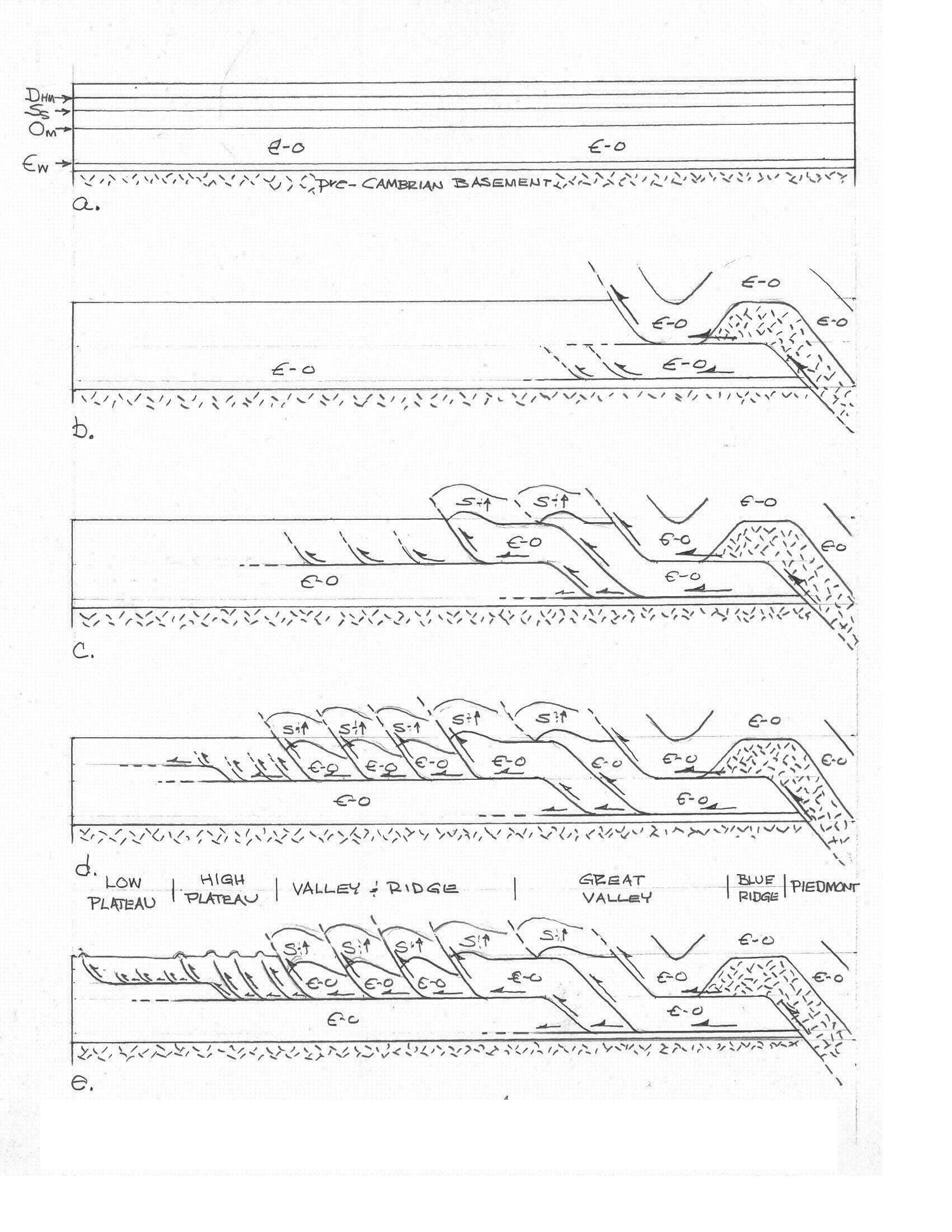

(367 KB, 2199 x 1700 pixels)		 image of Figure 20
(409 KB, 1700 x 2199)		 image of Figure 21

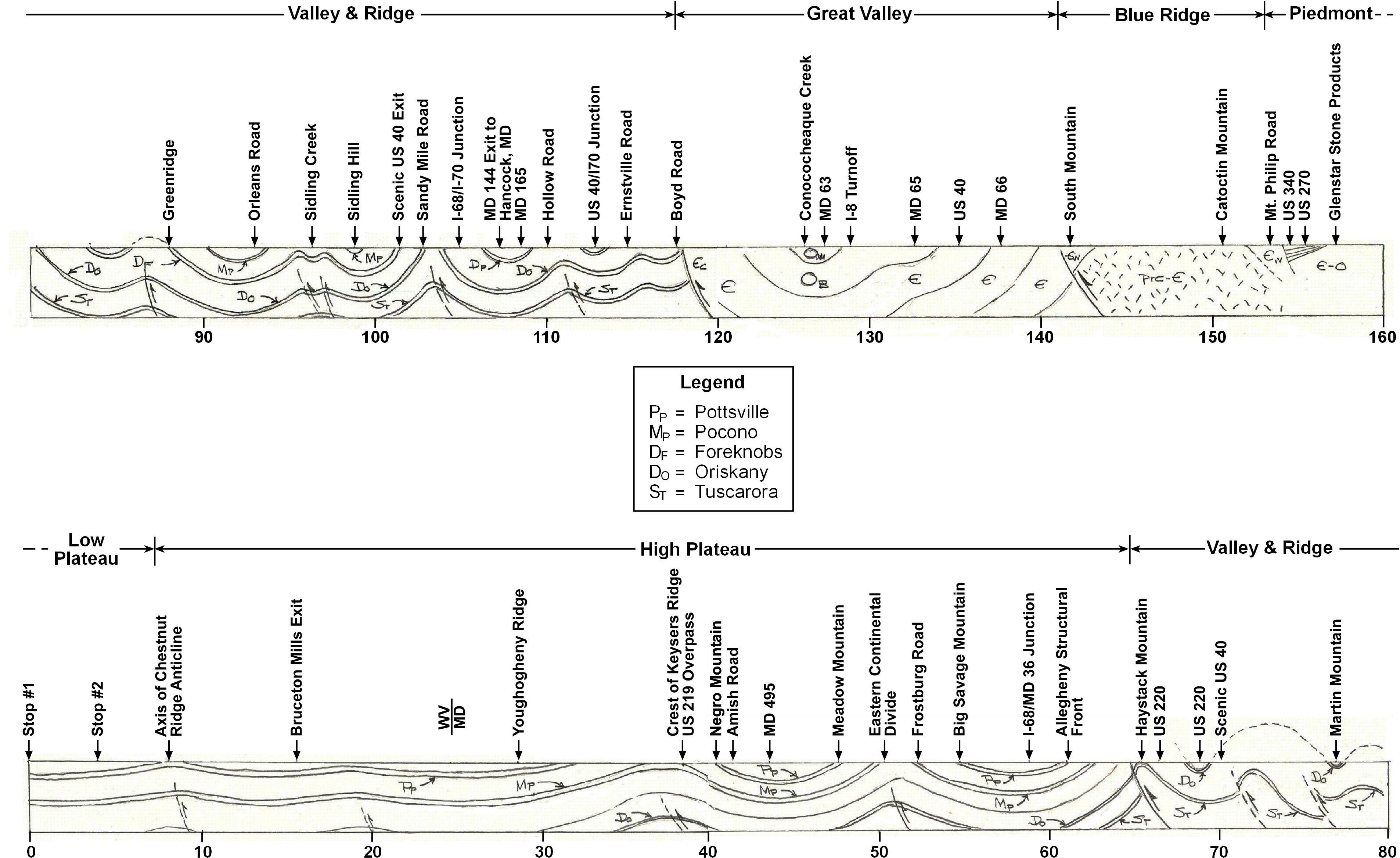

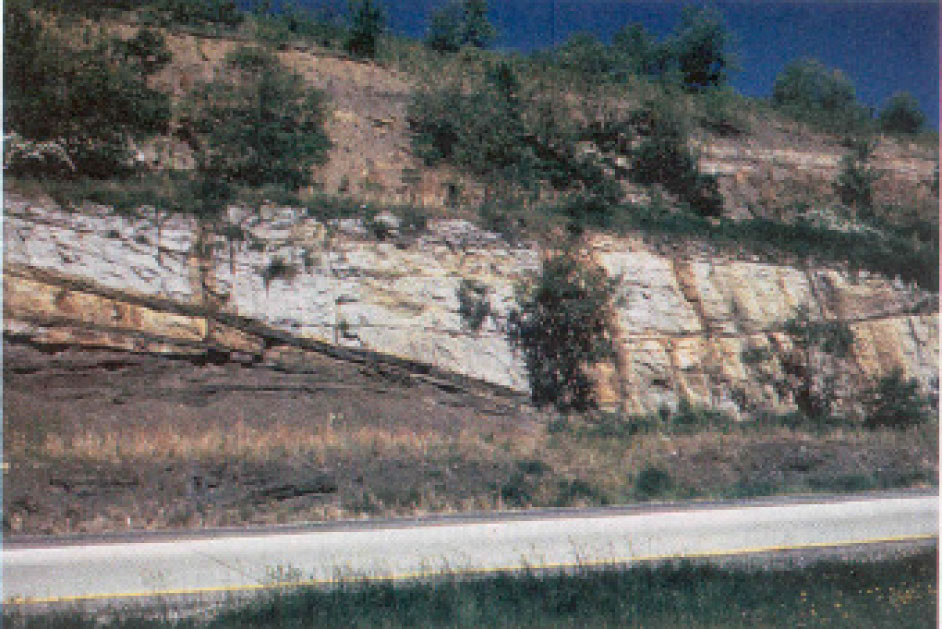

(749 KB, 3811 x 2335 pixels)		 image of Figure 22

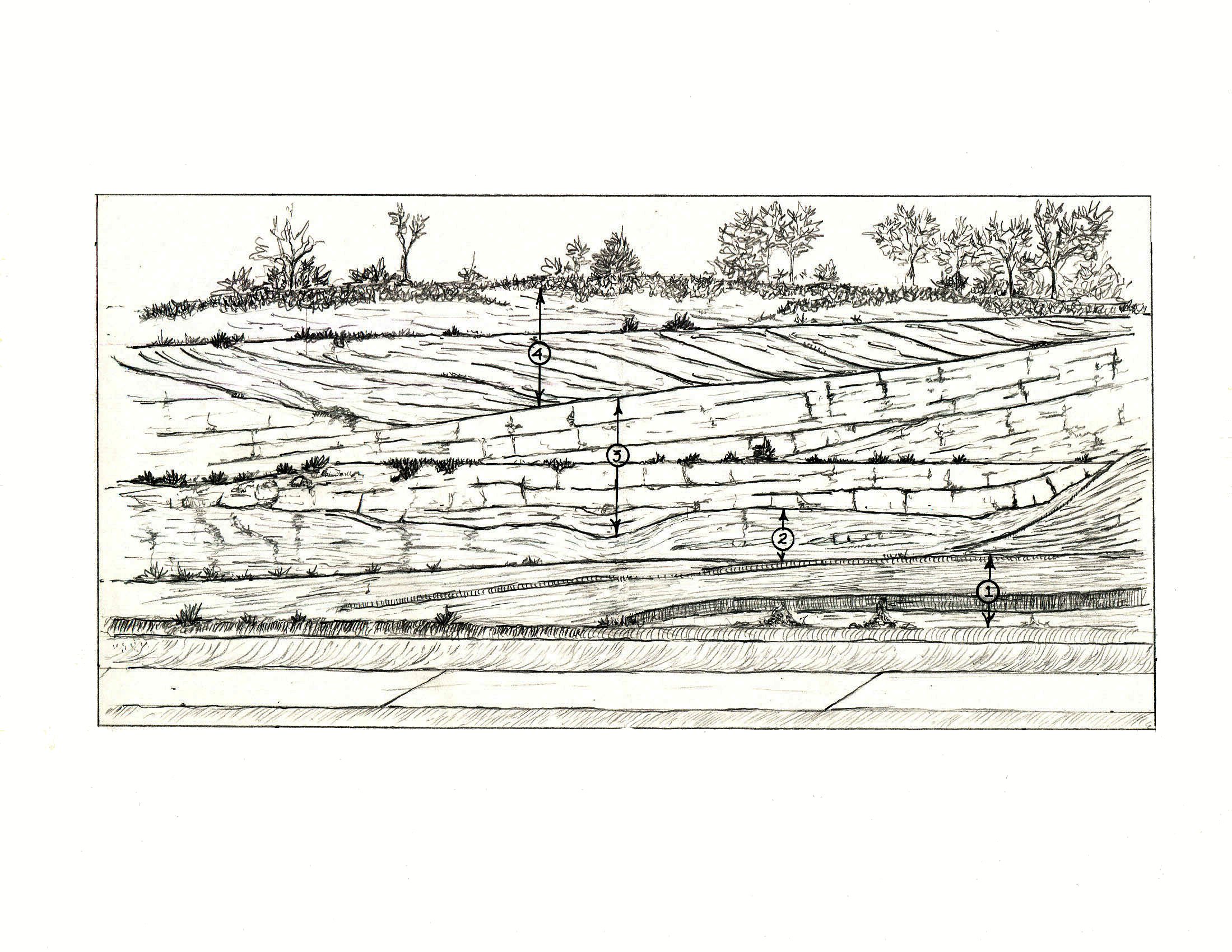

(175 KB, 942 x 629 pixels)		 image of Figure 23

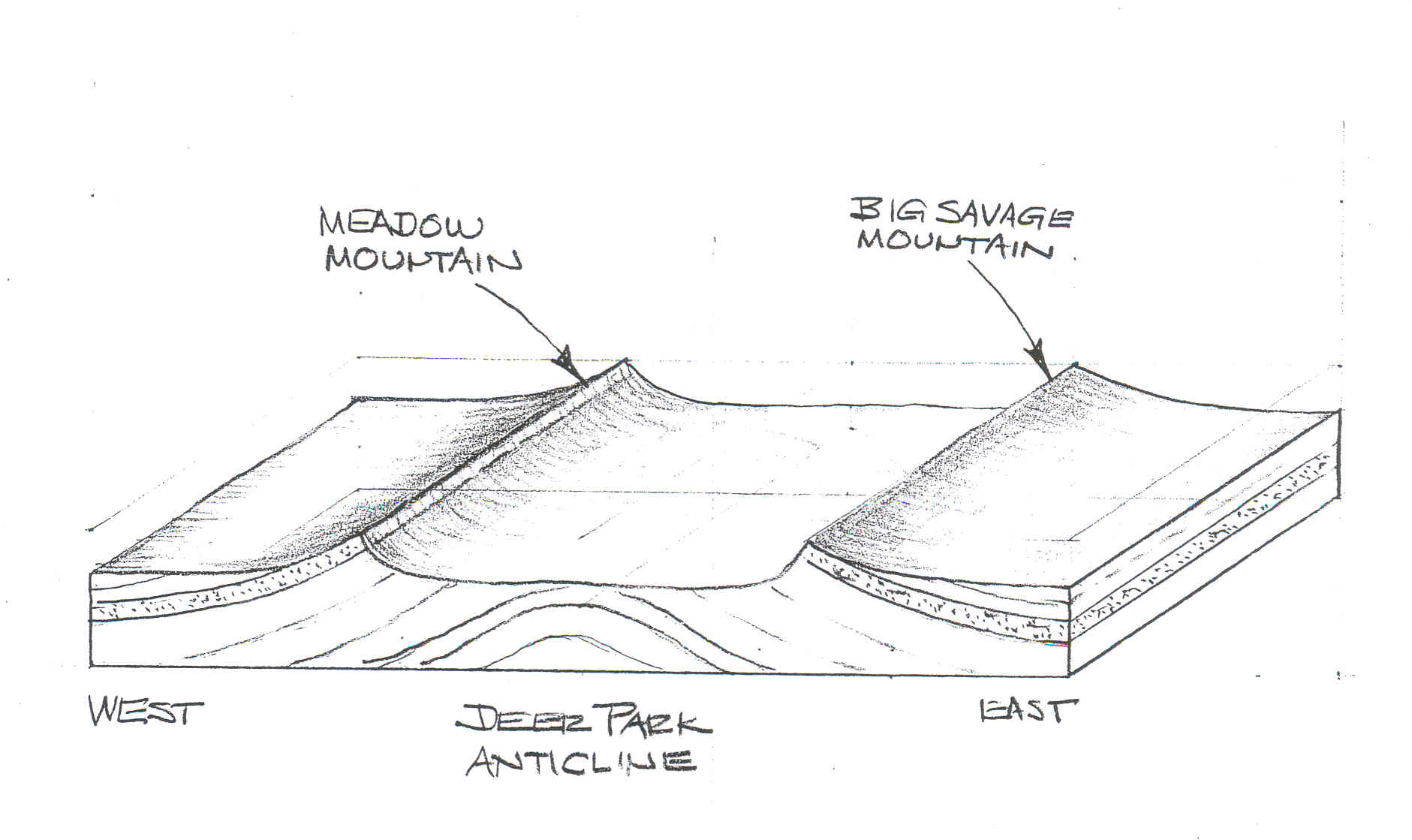

(577 KB, 2199 x 1700 pixels)		 image of Figure 24
(124 KB, 1881 x 1119 pixels)

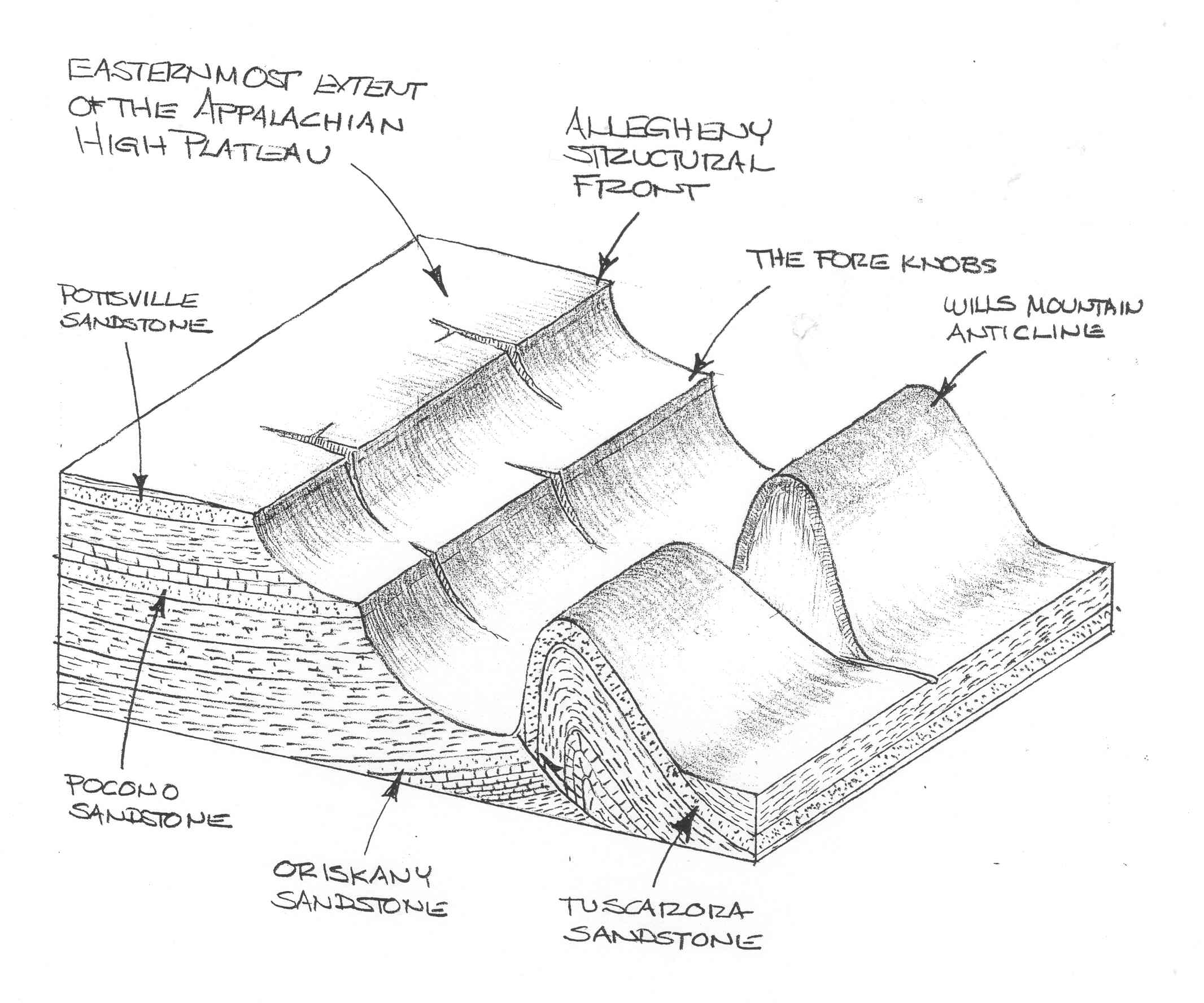

image of Figure 25

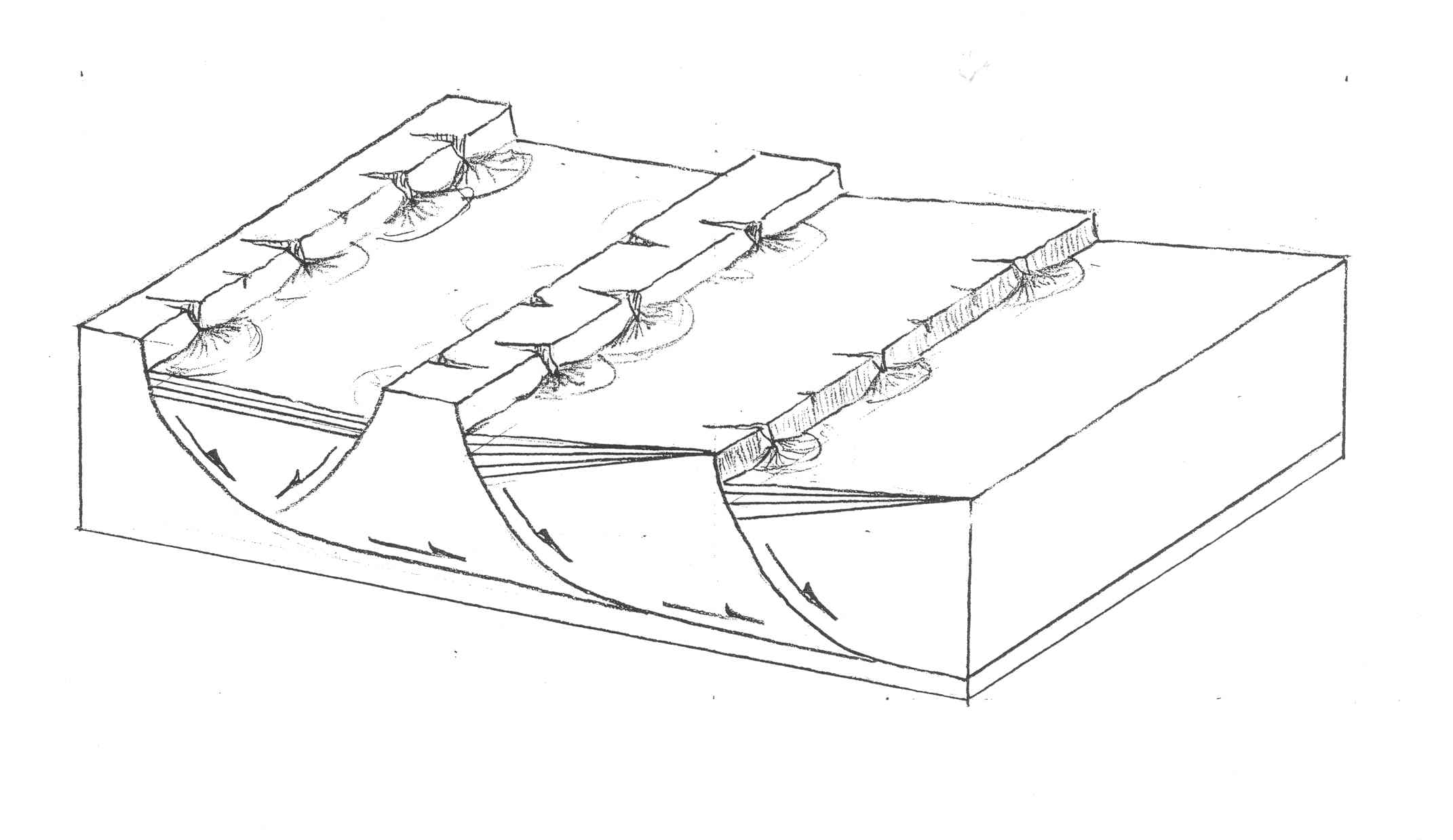

(237 KB, 2132 x 1776 pixels)		 image of Figure 26

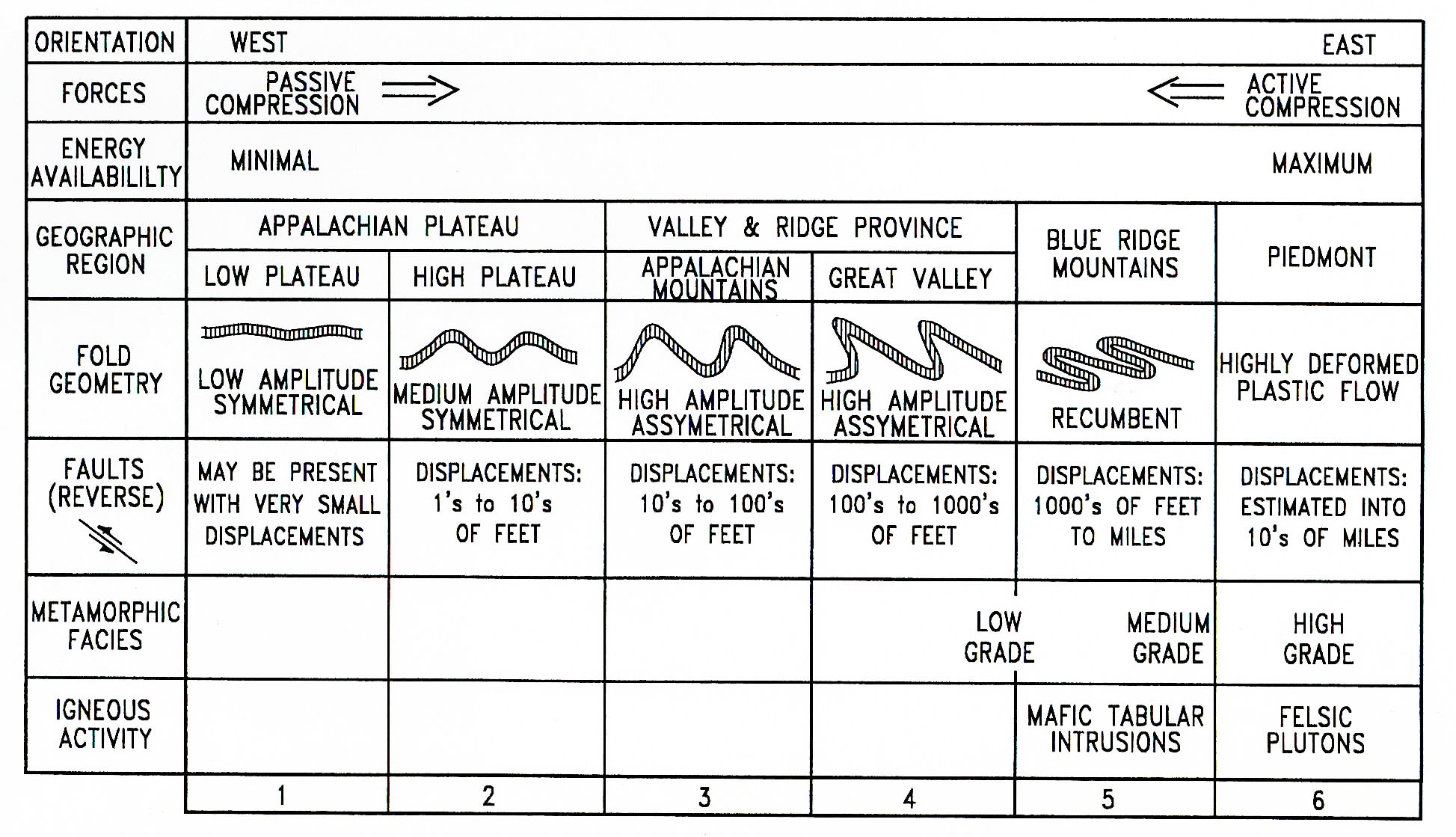

(92 KB, 2142 x 1239 pixels)		 image of Table 1
(354 KB, 1947 x 1119 pixels)
