Click Here To Go To Trace Elements Framed Home Page Stratigraphic Distribution of Chlorine (Cl)

Click on image for larger view

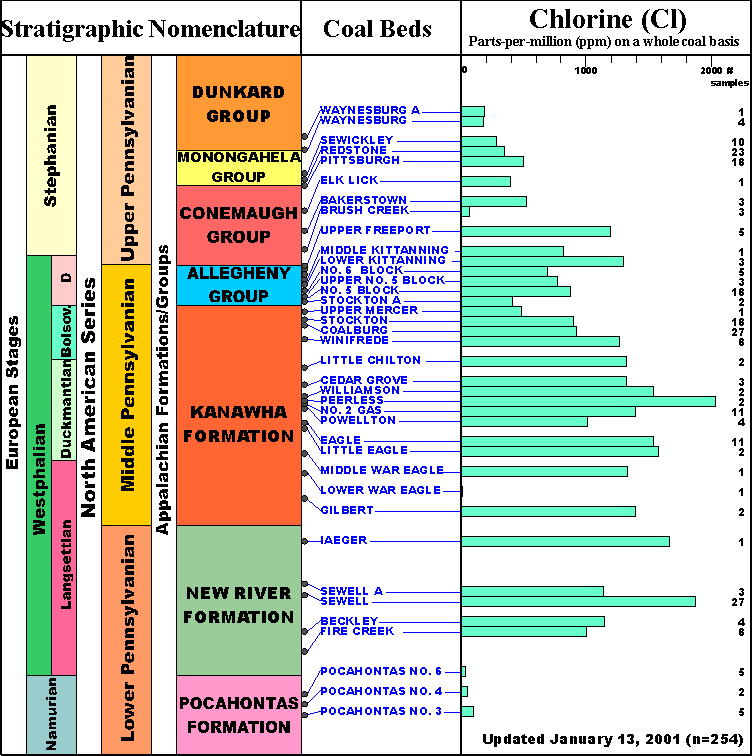

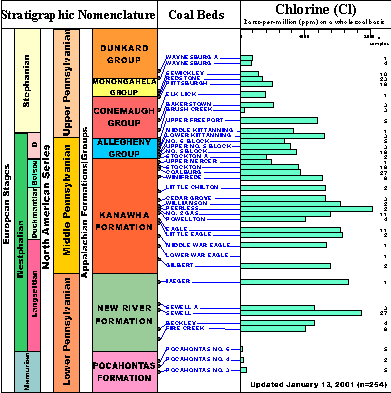

The stratigraphic distribution of Chlorine (Cl) shows very low chlorine contents for coals of the Pocahontas Formation, and higher but gradually decreasing chlorine contents in coals of the New River Formation through the Allegheny Group.  Upper Pennsylvanian coals were relatively low in chlorine content.
Go to Chlorine State MapGo to Chlorine Summary StatisticsGo to General Elements PageGo to HAP Elements Page
