WVGES Trace Elements in West Virginia Coals

Click Here To Go To Trace Elements Framed Home Page Chlorine (Cl) Summary Statistics

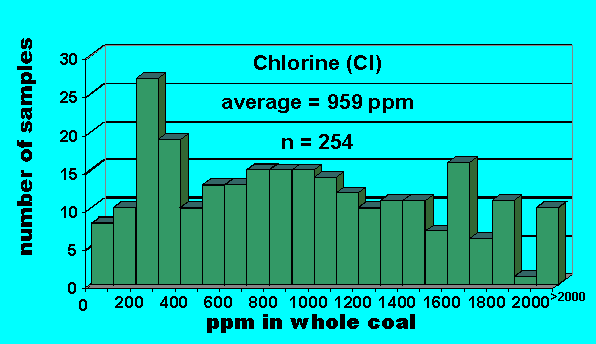

Click on histogram for larger view
The histogram of whole coal chlorine in all West Virginia coal beds shows a random distribution with a mean of 959 ppm (± 745 ppm) on a whole coal basis.  The maximum Cl content was 8150 ppm in an isolated sample of the Sewell coal.  Five of the highest 10 coals in Cl were the Sewell, and 3 were Eagle.  Chlorine did not correlate with ash yield  and correlated only with bromine (Br) (r = +0.6442).
Go to Stratigraphic Distribution of ChlorineGo to Chlorine State MapGo to General Elements PageGo to HAP Elements PageGo to All Elements Summary Statistics TableGo to HAP Summary Statistics Table
