Trace Elements in West Virginia Coals

Dysprosium (Dy) Geographic Distribution

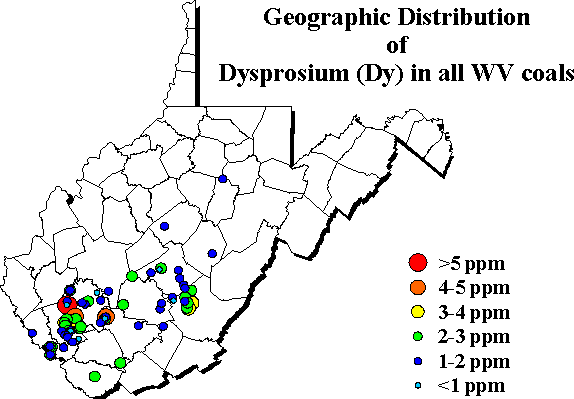

Map of West Virginia coal sample locations colored by dysprosium (Dy) content, in ppm (larger version)
Select the map to open a larger version.

A limited number of samples with detectable Dy shows that all samples were from southern West Virginia and the highest (>5 ppm) dysprosium whole coal values were in Boone County, with most Dy values less than 2 ppm.

To request specific information from a Survey geologist, see Requests for Information.

Page content last revised: March 2, 2002
