Trace Elements in West Virginia Coals

Niobium (Nb) Geographic Distribution

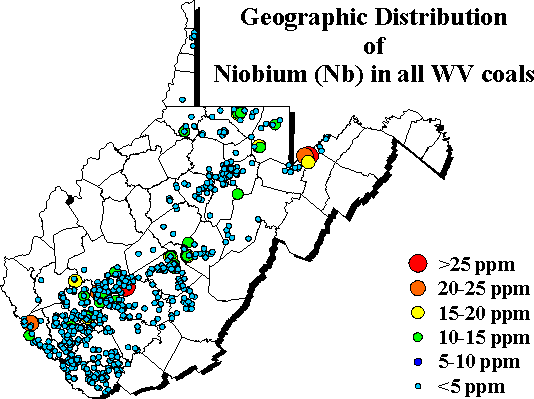

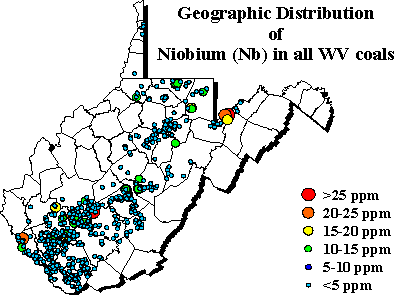

Map of West Virginia coal sample locations colored by niobium (Nb) content, in ppm (larger version)
Select the map to open a larger version.

High niobium values in the Bakerstown coal in the eastern panhandle and No. 5 Block, Stockton and Coalburg coals in southern WV show in the geographic distribution.  Most coal samples contained less than 5 ppm Nb.

To request specific information from a Survey geologist, see Requests for Information.
